What types of RC cars is the KingVal 2838 motor compatible with?

The KingVal 2838 motor is compatible with 1/14, 1/16, and 1/18 RC cars, making it a versatile option for various models.

What are the advantages of using a brushless sensorless motor like the KingVal 2838?

Brushless sensorless motors, such as the KingVal 2838, provide higher efficiency, increased durability, and reduced maintenance compared to brushed motors, thanks to fewer moving parts and less wear.

How do I install the KingVal 2838 motor and 35A ESC in my RC car?

To install the KingVal 2838 motor and 35A ESC, simply mount the motor using the multi-mounting system for M3 screws, connect the ESC to the motor, and ensure proper battery connections following the provided guidelines.

What is the maximum voltage and current rating for the KingVal 2838 motor?

The KingVal 2838 motor has a maximum voltage rating of less than 16V (4S Lipo) and can handle a maximum current of 38A, ensuring robust performance under various conditions.

Can I replace the rotor of the KingVal 2838 motor?

Yes, the KingVal 2838 motor features a removable and replaceable rotor, allowing for easy maintenance and upgrades to enhance performance.

1 5

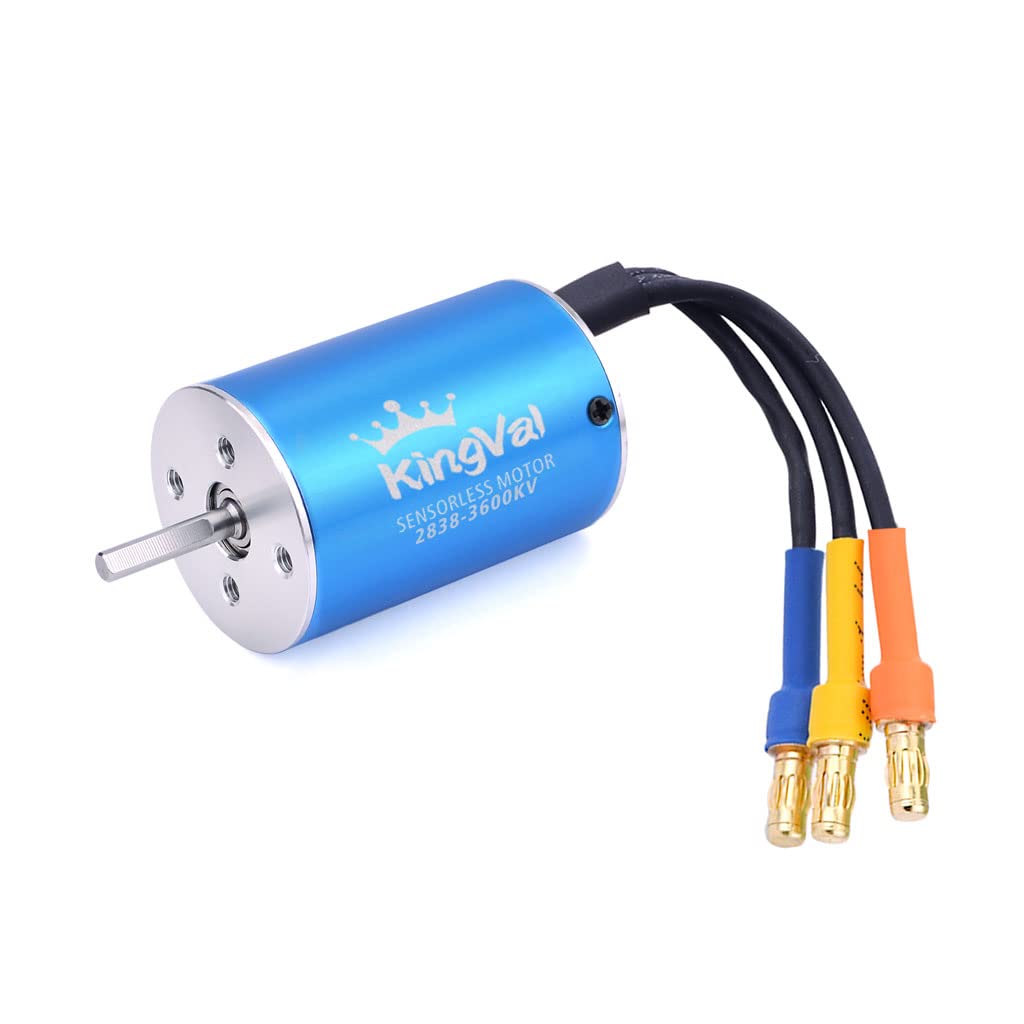

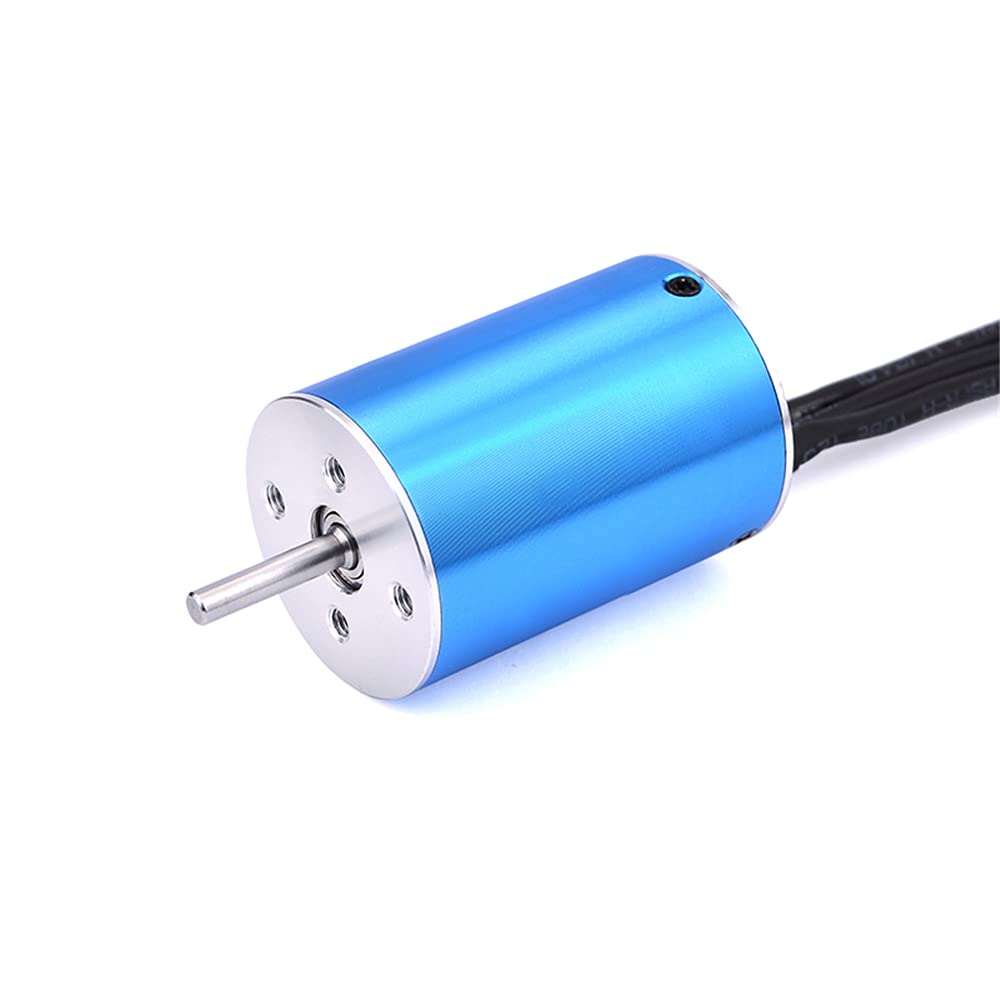

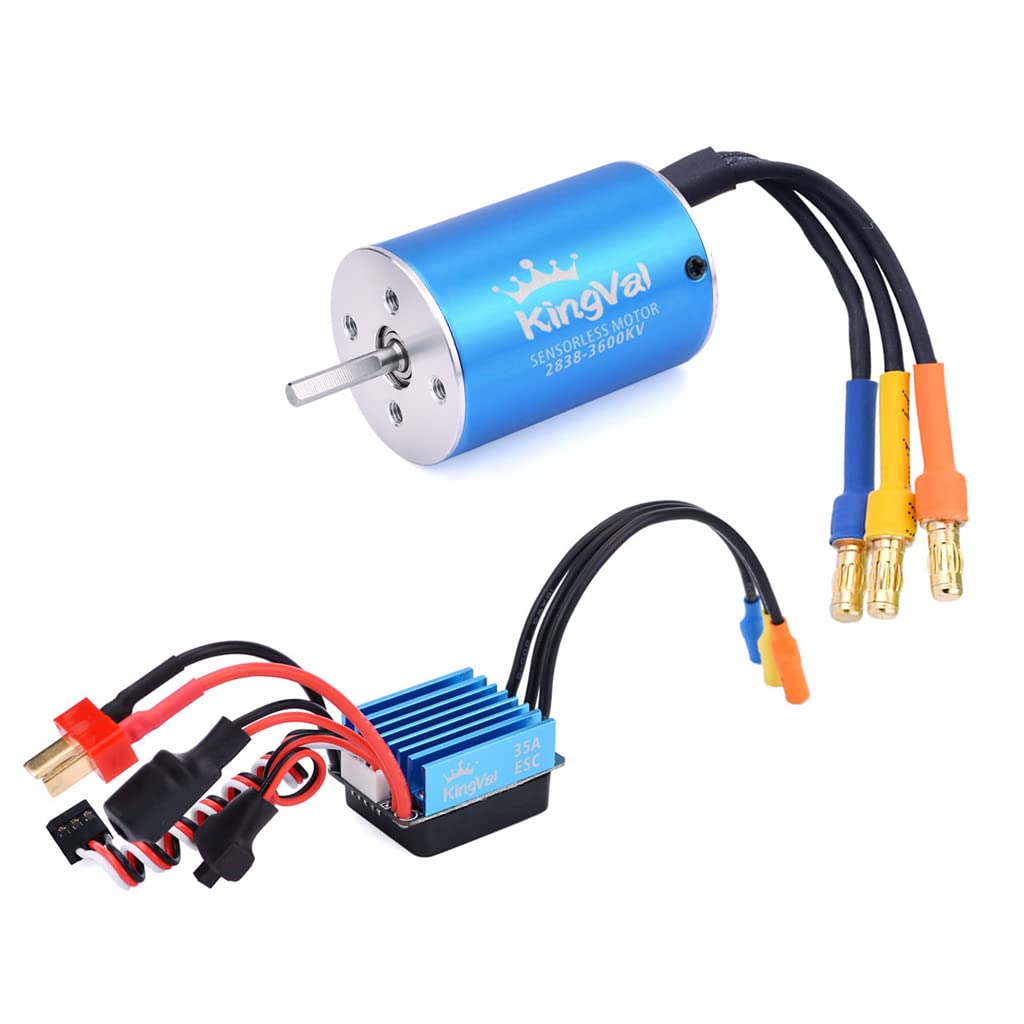

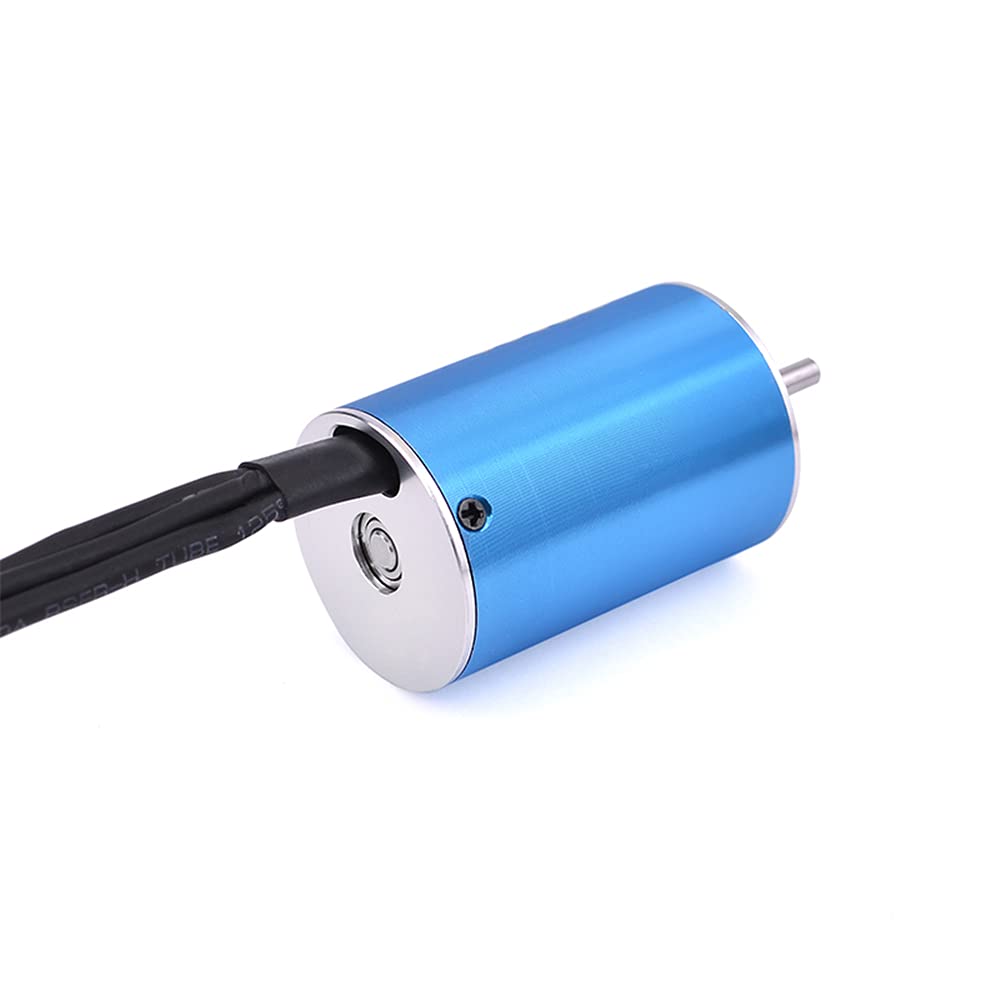

KingVal Replacement 2838 3200KV Brushless Sensorless Motor Shaft 3.175mm with 35A Brushless ESC Combo Compatible with 1/14 1/16

Name: KingVal Replacement 2838 3200KV Brushless Sensorless Motor Shaft 3.175mm with 35A Brushless ESC Combo Compatible with 1/14 1/16
Brand: KingVal
SKU: WBTOYB0BCG7MZ2B
Price: 51.56 USD
Availability: InStock

Availability

Hurry! Only left 10 in stock

SKU

WBTOYB0BCG7MZ2B

Vendor

KingVal

Product Type

RC Cars & Trucks

$51.56 USD

$51.56 USD ~~$73.66 USD~~

SAVE 30%

Shipping calculated at checkout.

Product variants

Estimated delivery: 3-5 days(United States), 8-12 days (International).

Return within 15 days after Delivery. Duties & taxes are non-refundable.

Guarantee safe and secure checkout

View full details

Description

Features: * 4 Pole 12 Slot Hi-torque Motor Design * CNC Machined 6061 T6 Billet Aluminum Heatsink Can * High Purity Copper Windings Maximizes Efficiency * High RPM ABEC5 Oversized Bearings * Universal fit,fits all 1/14th, 16th brushless cars-multi-mounting system for M3 screws * Precision balanced rotor,smoothness for best reliability and maximum RPM * Stator - Super Thin (0.35mm) Laminations * Removable/Replaceable Rotor * Precision Engineered for Maximum Energy Conversion Specification: Brand: KingVal Model: 2838 KV(RPM/Volt): 3200KV Max watts: 600W Max voltage: <16V(4S Lipo) Max current: 38A IO: 1.2A Resistance: 0.0455 Motor Size: 28*40mm Rotor poles: 4 Max RPM:50K Shaft length: 15mm Shaft diameter: 3.175mm Connector: 3.5mm gold Weight: 95g 35A ESC: Cont. Current/Burst Current: 35A/120A Motor Type: Sensorless Brushless Motor Suitable Car: 1/18, 1/16, 1/14 Car Suitable Brushless Motor: =12T Resistance: 0.003ohm Battery: 2-3 cells Lipo; 4-9 cells NiMH BEC Output: 5V/2A(analog mode) Dimension: 25*30*18.5mm Weight: 33g Package List: 1 * 2838 Sensorless Motor 1 * 35A Brushless ESC

Shipping Information

Shipping Information for Toytooth

Packaging & Shipping Protection
All orders are shipped in double boxes and come with full insurance for additional protection. Items are usually shipped within 2-3 working days. We are based right here in the United States, and we use secure shipping methods for your peace of mind. For your protection, we may contact you for extra verification of the payment method.

The product will be delivered to your doorstep, carefully packed to avoid any damage. We understand that privacy is important to our customers, and we aim to provide DISCREET packaging. The product name, description, sender's name, or any details that could hint at the product inside will be encrypted to ensure privacy. The package you receive will be completely discreet.

Note: All orders above $250 will require a signature upon delivery.

Shipping Destinations

We currently ship to the following countries:

United States	Spain	Denmark	Slovak Republic	Latvia
Great Britain	Poland	Japan	Singapore	Finland
Canada	Portugal	Hungary	Lithuania	India
Germany	UAE	Australia	Slovenia	Estonia
France	Austria	Croatia	Bulgaria	Turkey
Netherlands	Belgium	Czech Republic	Luxembourg	Israel
Sweden	Italy	Ireland	Saudi Arabia	Switzerland

Processing Time

Orders are processed within 1-3 business days.

Shipping Methods & Delivery Times

Delivery times are estimates and may vary depending on the customer's location, customs processing, weather conditions, or other unforeseen circumstances.

Domestic orders: Usually take 3-5 business days to deliver.
International orders: Usually delivered in 8-12 business days.

Shipping Costs

Shipping costs are calculated at checkout based on the shipping destination and selected shipping method. We offer free standard shipping within the United States.

Customs, Duties, and Taxes

International orders may be subject to customs duties, taxes, and import fees imposed by the destination country. These charges are the responsibility of the customer. Please check with your local customs office for more details.

Order Tracking

Once your order has shipped, you will receive a tracking number via email to monitor your shipment's progress.

Lost or Delayed Shipments

If your package is lost or significantly delayed, please contact our support team, and we will assist you in resolving the issue.

Returns & Refunds

For details on returns and refunds, please refer to our Return Policy page.

For any questions, feel free to contact our customer service team at support@toytooth.com.

Safety & Compliance

⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.

Reviews

Frequently Asked Questions

Q: What types of RC cars is the KingVal 2838 motor compatible with? A: The KingVal 2838 motor is compatible with 1/14, 1/16, and 1/18 RC cars, making it a versatile option for various models.
Q: What are the advantages of using a brushless sensorless motor like the KingVal 2838? A: Brushless sensorless motors, such as the KingVal 2838, provide higher efficiency, increased durability, and reduced maintenance compared to brushed motors, thanks to fewer moving parts and less wear.
Q: How do I install the KingVal 2838 motor and 35A ESC in my RC car? A: To install the KingVal 2838 motor and 35A ESC, simply mount the motor using the multi-mounting system for M3 screws, connect the ESC to the motor, and ensure proper battery connections following the provided guidelines.
Q: What is the maximum voltage and current rating for the KingVal 2838 motor? A: The KingVal 2838 motor has a maximum voltage rating of less than 16V (4S Lipo) and can handle a maximum current of 38A, ensuring robust performance under various conditions.
Q: Can I replace the rotor of the KingVal 2838 motor? A: Yes, the KingVal 2838 motor features a removable and replaceable rotor, allowing for easy maintenance and upgrades to enhance performance.
