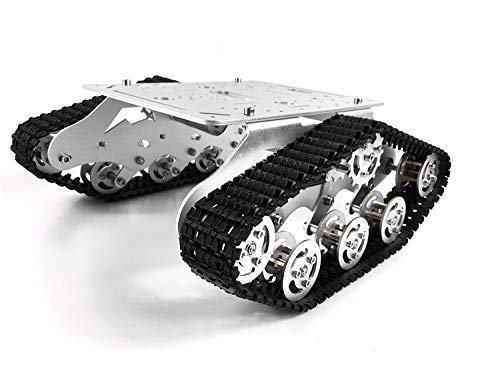

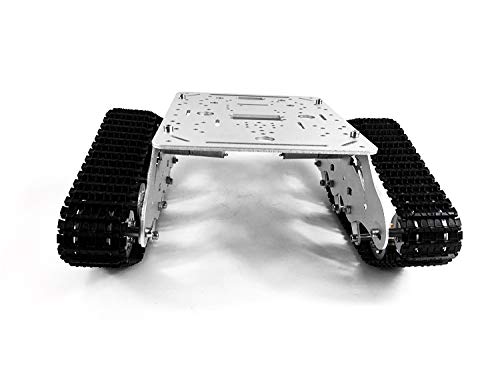

View compareSwaytail Processional Ts300 Shock Absorption Robot Tank Chassis With Suspension Supporting Holder For Arduino Raspberry Pie, Rc Tracked Model With 2Pcs Dc Encoder Motor For Steam Teaching
Swaytail Processional Ts300 Shock Absorption Robot Tank Chassis With Suspension Supporting Holder For Arduino Raspberry Pie, Rc Tracked Model With 2Pcs Dc Encoder Motor For Steam Teaching
Hurry! Only left 10 in stock
SKU
WBTOYB09KL6PWP7Vendor
SwaytailProduct Type
Science Kits & Toys
Regular price
$86.13 USD
Sale price
$86.13 USD
Regular price
$123.04 USD
Unit price
per
Shipping calculated at checkout.
Share
Couldn't load pickup availability
Estimated delivery: 3-5 days(United States), 8-12 days (International).
Return within 15 days after Delivery. Duties & taxes are non-refundable.
Guarantee safe and secure checkout
Description
Description
Product Application:
- Competition;
- Graduation Design;
- The Engineering Prototype;
- Robot Project;
- Diy Creations
&Nbsp;
Ts300 Tank Chassis Parameters:
- Name: Ts300 Shock-Absorbing Tank Chassis
- Material: Aluminum Alloy
- Surface: Sandblasted
- Color: Black

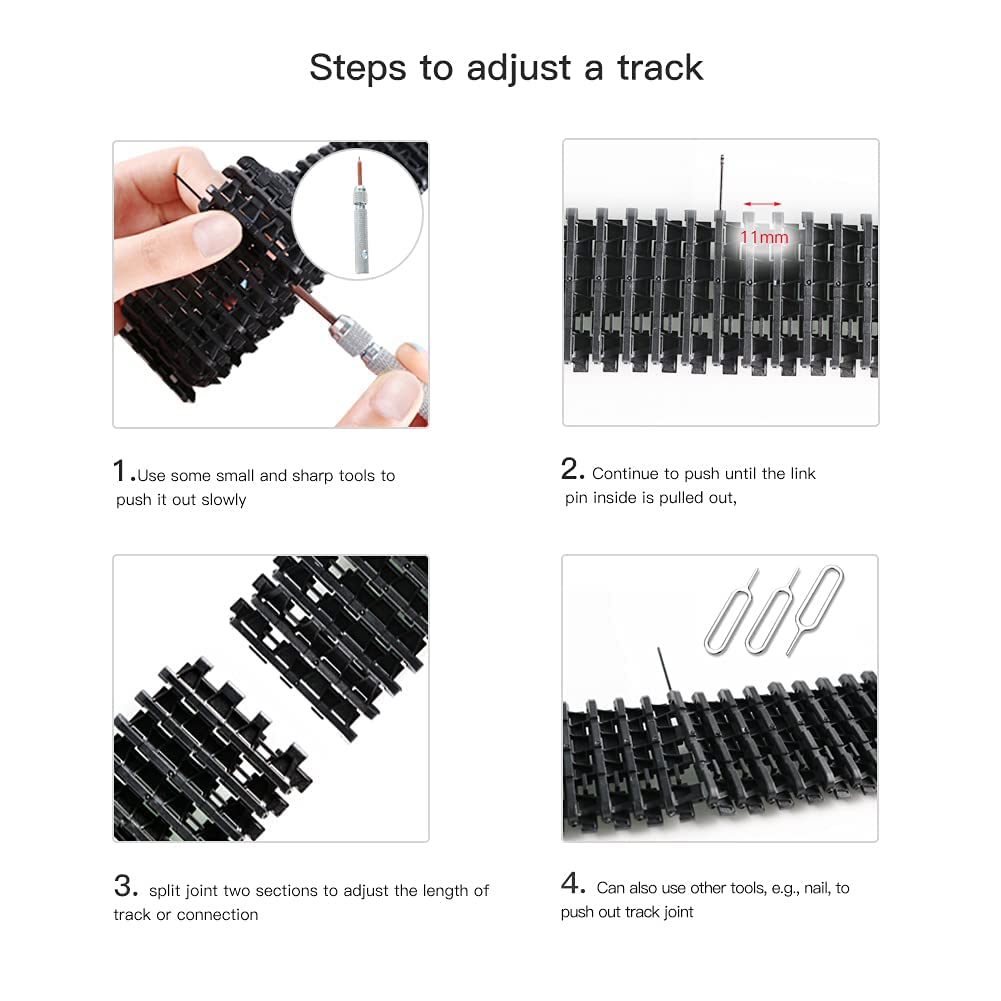

- Tracks: Engineering Plastics,
- Drive Wheel: Aluminum Alloy
- Weighing Wheel: Aluminum Alloy
- Track Width: 40Mm
- Weight: 1.1Kg
- Size: About 270 * 255 * 110Mm (Length * Width * Height)
- Designed Load: 8Kg

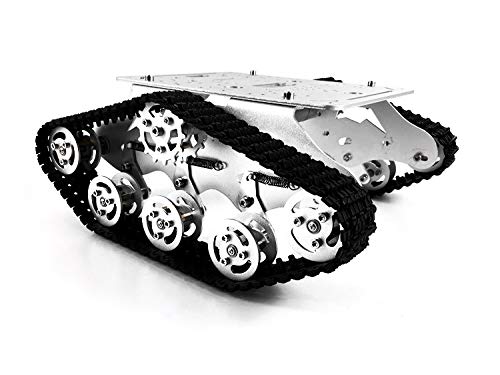

- Independent Shock Absorption System
&Nbsp;

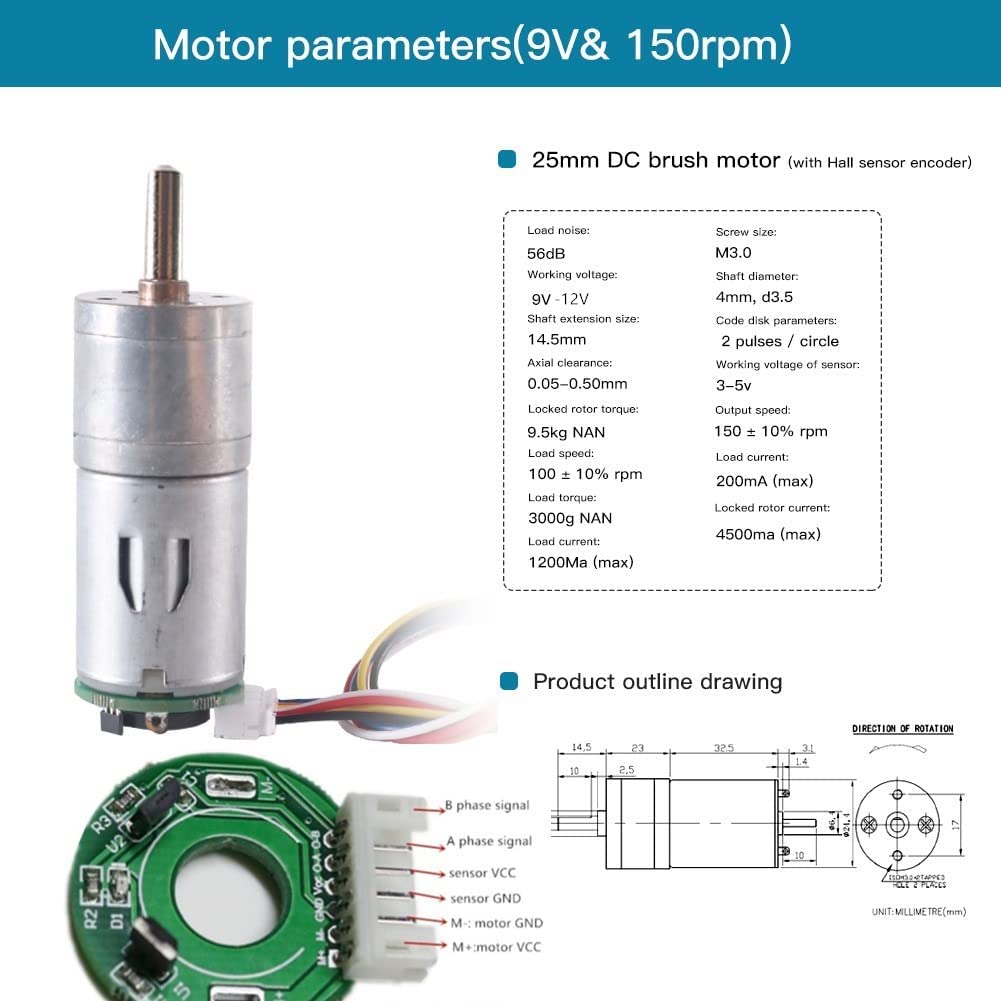

Motor Parameters
- Name: 25Mm Gear Motor
- Output Speed: 150±10%Rpm
- No_Load Current: 200Ma (Max)
- Stall Current: 4500Ma(Max)
- Stall Torque: 9.5Kgnan
- Rated Speed: 100±10%Rpm
- Rated Torque: 3000Gnan
- Rated Current: 1200Ma (Max)
- Noise: 56Db
- Working Voltage: 9-12V
- Outside Shaft Length: 14.5Mm
- Shaft End Play: 0.05-0.50Mm
- Screw Size:M3.0
- Dia. Of Shaft Phi 4Mm, D3.5
&Nbsp;
Encoder Parameters:
- Type: Ab-Phase Incremental Hall Encoder
- Line Speed: 150 (Measured By Reducer Output Shaft)
- Supply Voltage: 5V
- Interface Type: Ph2.0 (Standard Motor Cable)
&Nbsp;
Shipping List
- Metal Part: 1Set
- Bearing Wheel: 10Pcs
- Driving Wheel: 2Pcs
- Plastic Track: 2Pcs
- Encoder Dc Motor: 2Pcs
- Screws Kit: 1Set
- Others: Several
Shipping Information
Shipping Information
Shipping Information for Toytooth
Packaging & Shipping Protection
All orders are shipped in double boxes and come with full insurance for additional protection. Items are usually shipped within 2-3 working days. We are based right here in the United States, and we use secure shipping methods for your peace of mind. For your protection, we may contact you for extra verification of the payment method.
The product will be delivered to your doorstep, carefully packed to avoid any damage. We understand that privacy is important to our customers, and we aim to provide DISCREET packaging. The product name, description, sender's name, or any details that could hint at the product inside will be encrypted to ensure privacy. The package you receive will be completely discreet.
Note: All orders above $250 will require a signature upon delivery.
Shipping Destinations
We currently ship to the following countries:
| United States |
Spain | Denmark | Slovak Republic | Latvia |
| Great Britain | Poland | Japan | Singapore | Finland |
| Canada | Portugal | Hungary | Lithuania | India |
| Germany | UAE | Australia | Slovenia | Estonia |
| France | Austria | Croatia | Bulgaria | Turkey |
| Netherlands | Belgium | Czech Republic | Luxembourg | Israel |
| Sweden | Italy | Ireland | Saudi Arabia | Switzerland |
Processing Time
Orders are processed within 1-3 business days.
Shipping Methods & Delivery Times
Delivery times are estimates and may vary depending on the customer's location, customs processing, weather conditions, or other unforeseen circumstances.
- Domestic orders: Usually take 3-5 business days to deliver.
- International orders: Usually delivered in 8-12 business days.
Shipping Costs
Shipping costs are calculated at checkout based on the shipping destination and selected shipping method. We offer free standard shipping within the United States.
Customs, Duties, and Taxes
International orders may be subject to customs duties, taxes, and import fees imposed by the destination country. These charges are the responsibility of the customer. Please check with your local customs office for more details.
Order Tracking
Once your order has shipped, you will receive a tracking number via email to monitor your shipment's progress.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team, and we will assist you in resolving the issue.
Returns & Refunds
For details on returns and refunds, please refer to our Return Policy page.
For any questions, feel free to contact our customer service team at support@toytooth.com.
Safety & Compliance
Safety & Compliance
⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
- Q: What is the maximum load capacity of the TS300 shock absorption robot tank chassis? A: The TS300 shock absorption robot tank chassis is designed to support a maximum load of 8KG, making it suitable for various robotic projects and DIY creations.
- Q: Is the TS300 tank chassis compatible with Arduino and Raspberry Pi? A: Yes, the TS300 tank chassis is compatible with Arduino UNO R3, Raspberry Pi, and Micro-bit, allowing for easy integration and programming for robotics projects.
- Q: What materials are used in the construction of the TS300 tank chassis? A: The TS300 tank chassis is made from high-quality aluminum alloy for the frame and drive wheels, with engineering plastics used for the tracks, ensuring durability and strength.
- Q: How does the suspension system of the TS300 tank chassis work? A: The TS300 features an independent shock absorption system that helps the robot tank chassis navigate obstacles like crushed stones, enhancing its performance in various terrains.
- Q: What items are included in the shipping list for the TS300 tank chassis? A: The shipping list for the TS300 tank chassis includes a complete metal part set, 10 bearing wheels, 2 driving wheels, 2 engineering plastic tracks, 2 encoder DC motors, and a screws kit.
