View compareWishiot DS5160SSG 60kg Servo RC Digital Servo DC6-8.4V Metal Gear Large Torque High Speed IP67 Waterproof Servo 270 Degree with

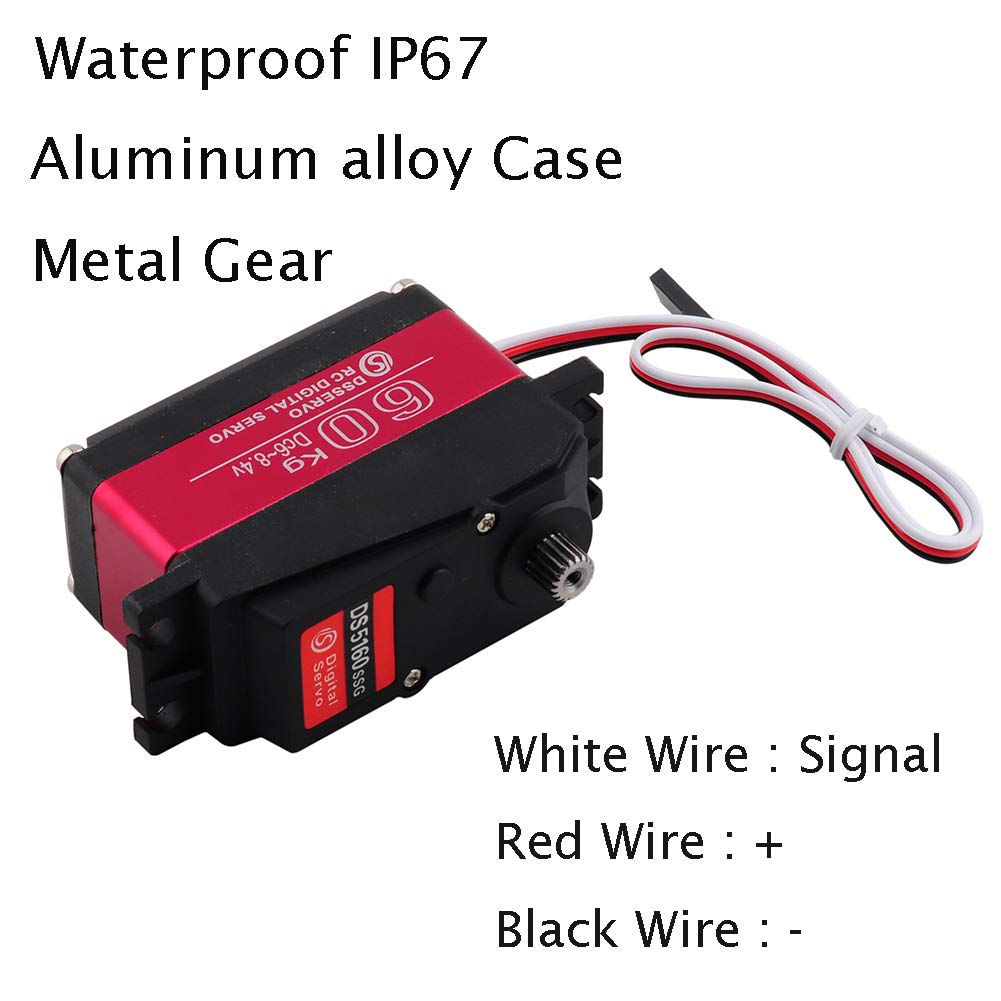

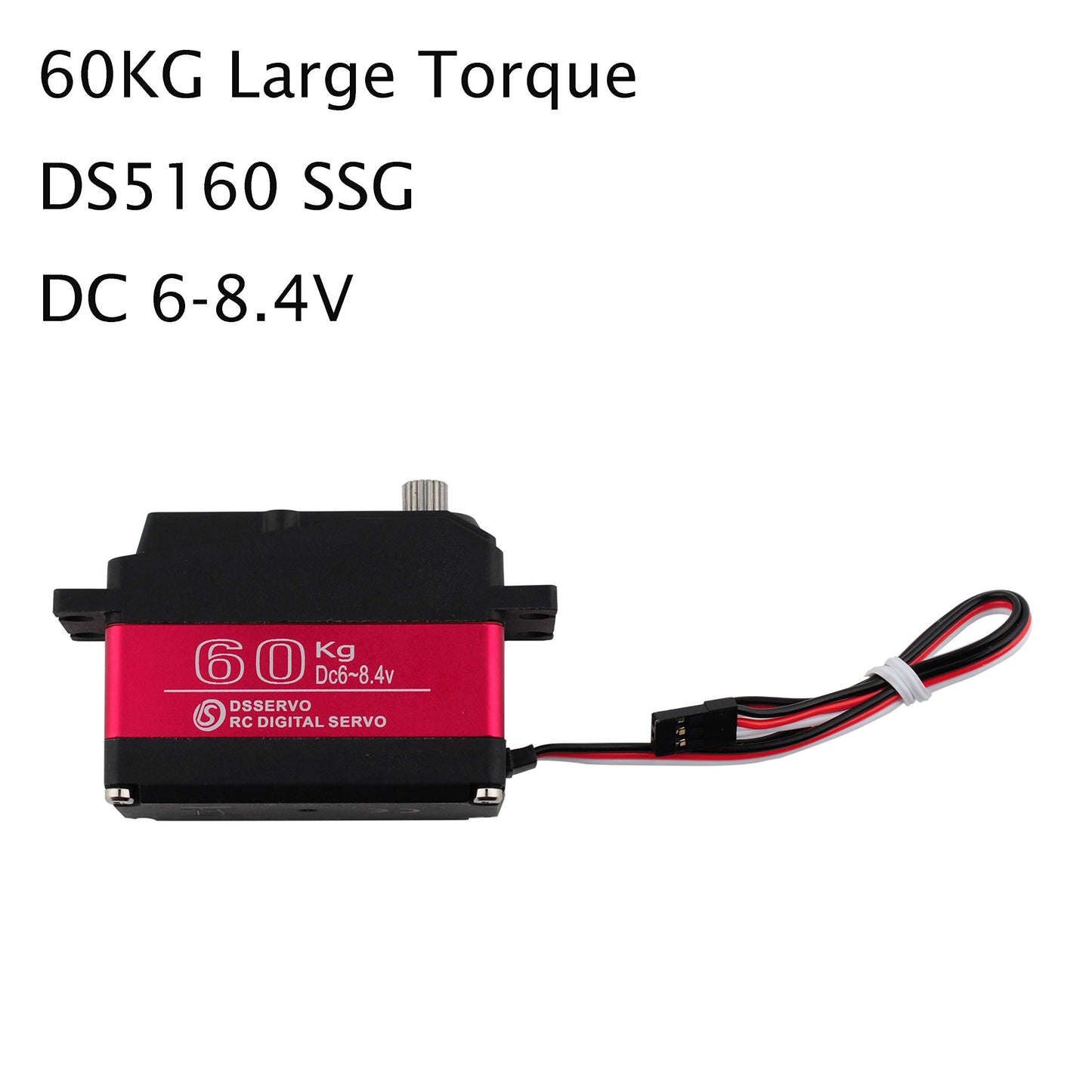

Wishiot DS5160SSG 60kg Servo RC Digital Servo DC6-8.4V Metal Gear Large Torque High Speed IP67 Waterproof Servo 270 Degree with
Hurry! Only left 10 in stock
SKU
WBTOYB08HYX5SX3Vendor
WishiotProduct Type
RC Cars & Trucks
Regular price
$45.49 USD
Sale price
$45.49 USD
Regular price
$64.99 USD
Unit price
per
Shipping calculated at checkout.
Share
Couldn't load pickup availability
Estimated delivery: 3-5 days(United States), 8-12 days (International).
Return within 15 days after Delivery. Duties & taxes are non-refundable.
Guarantee safe and secure checkout
Description
Description

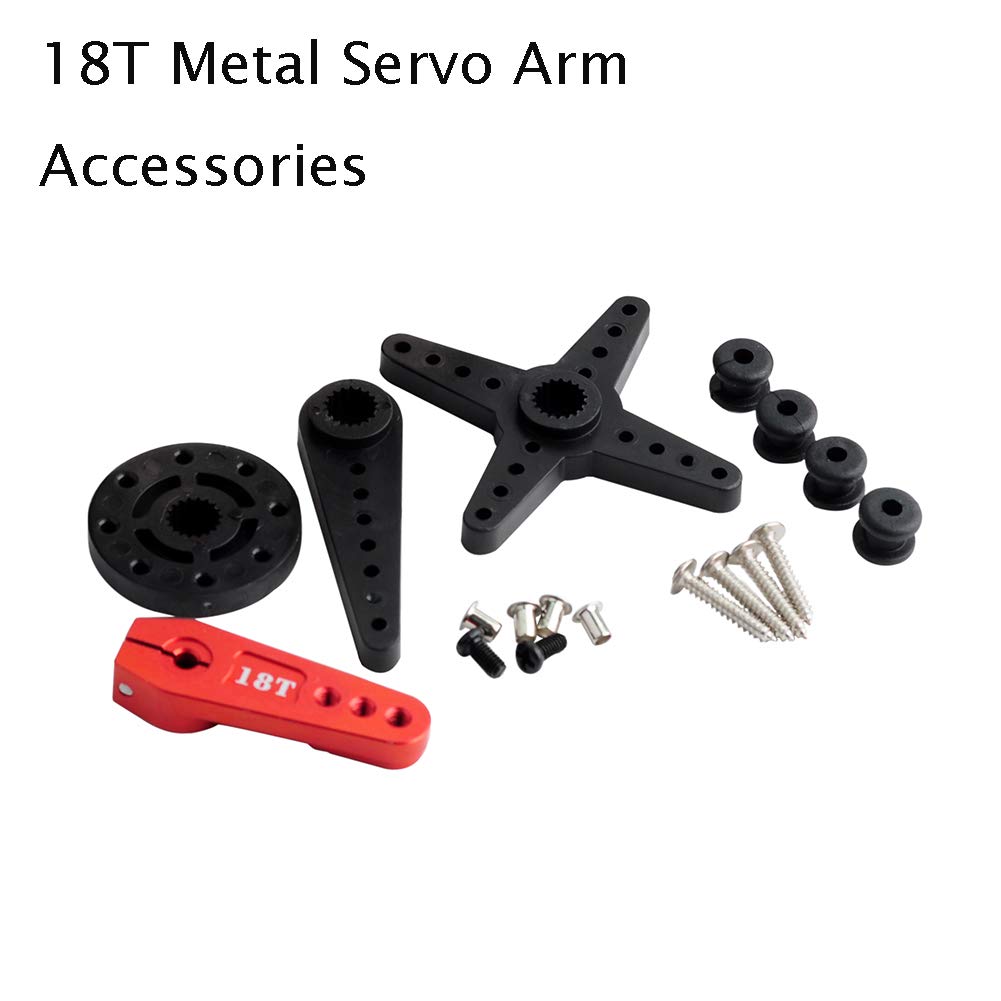

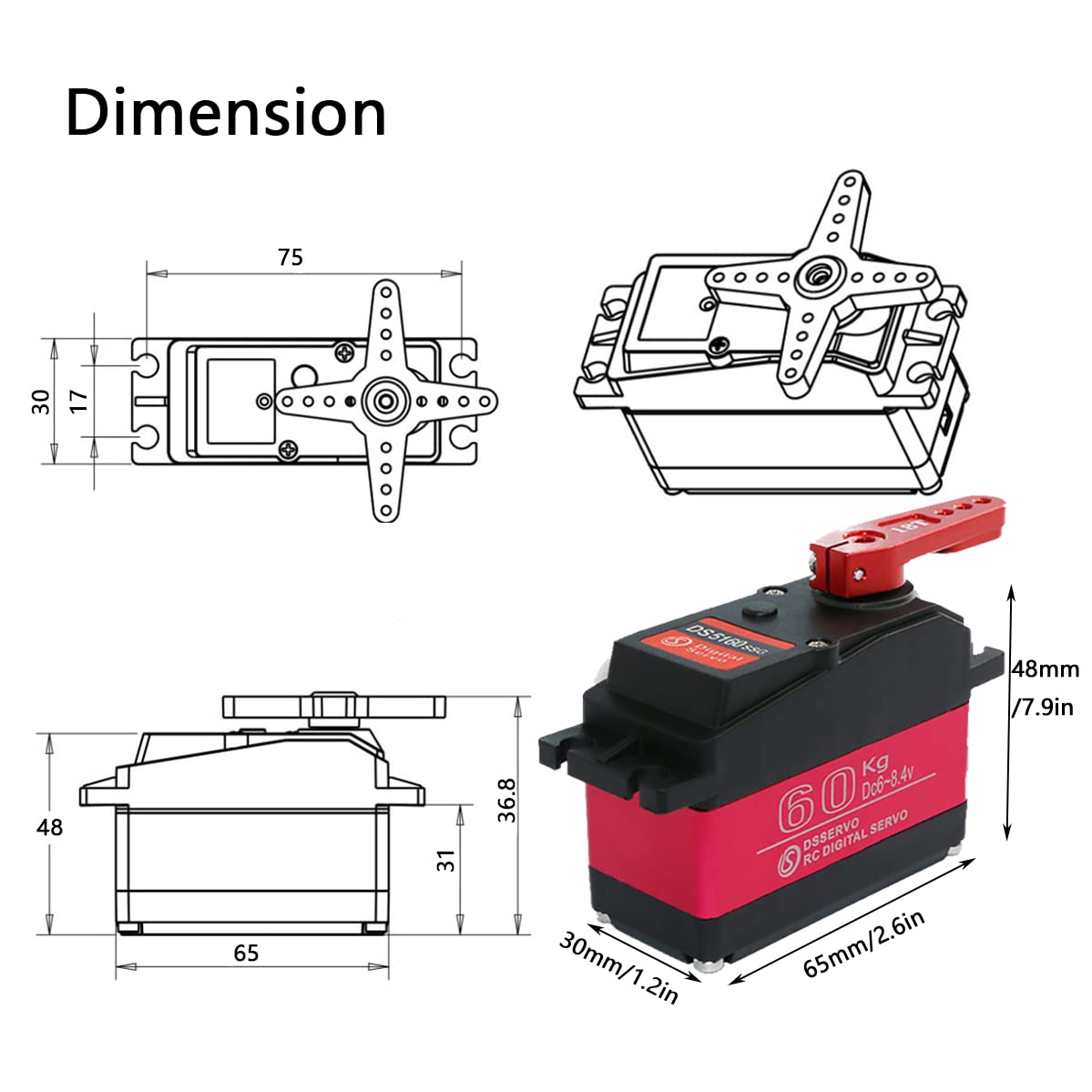

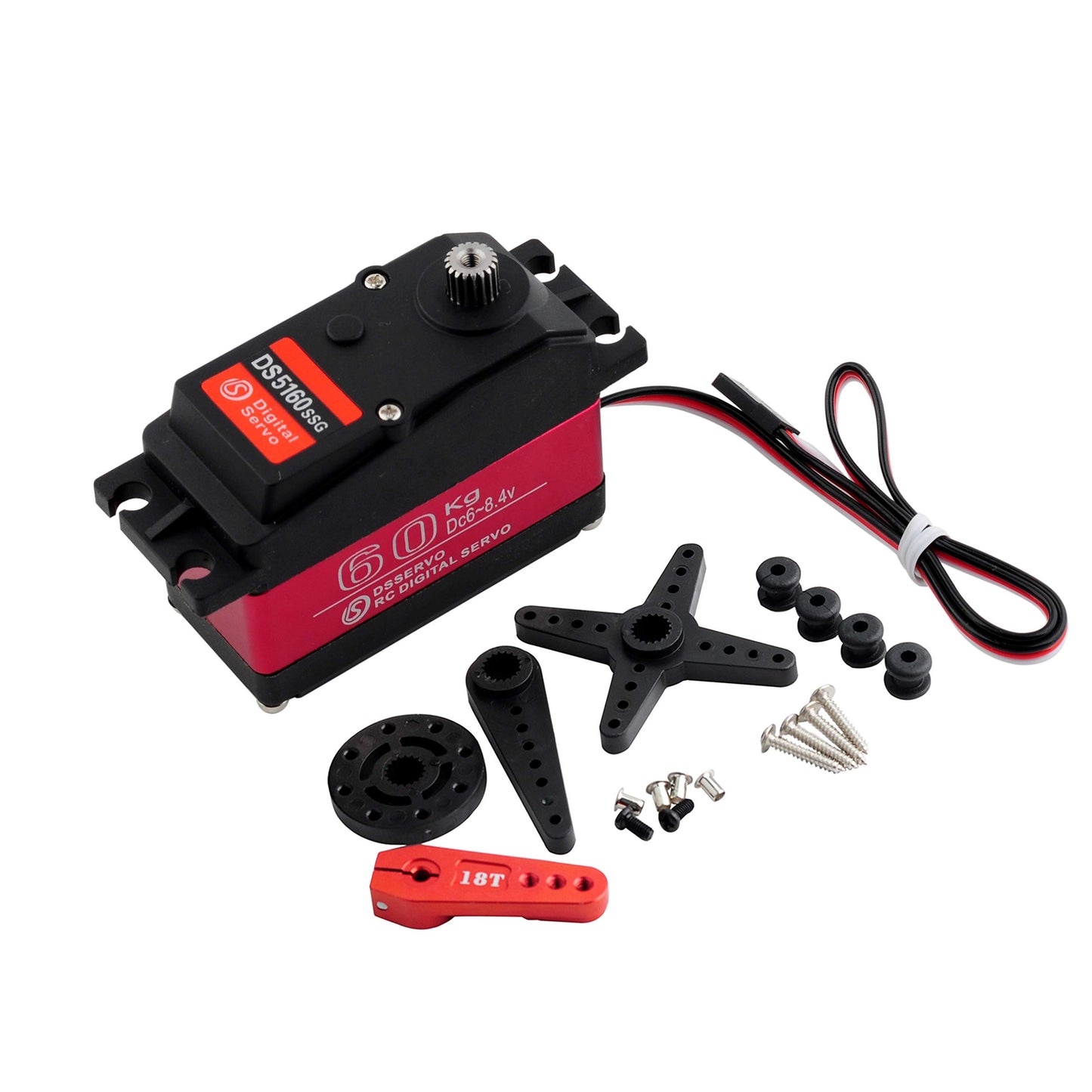

Apply Environmental Condition Storage Temperature Range: -30?~80? Operating Temperature Range: -15?~70? Operating Voltage Range: 6-8.4V Mechanical Specification Size: 65*30*48mm Weight: 158g Gear ratio: 279 Bearing: Double bearing Connector wire: 3005mm Motor: 3-pole(s) Waterproof performance: IP67 Electrical Specification Operating Voltage 6V 7.4V 8.4V Idle current(at stopped) 4mA 5mA 6mA Operating speed (at no load) 0.17 sec/60 0.15sec/60 0.13sec/60 Stall torque (at locked) 58kg.cm.@6V, 65kg.cm.@7.4V, 70kg.cm.@8.4V Stall current (at locked) 3.5A 5A 6.2A Control Specification Control System: PWM(Pulse width modification) Pulse width range: 500~2500sec Neutral position: 1500sec Running degree: 270 (when 500~2500 sec) Dead band width: 3 sec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500~2500 sec) Package Included: 1 X DS5160SSG 60KG Digital Servo 1 X 18T Aluminum Servo Arm 1 X Servo Horn accessories
Shipping Information
Shipping Information
Shipping Information for Toytooth
Packaging & Shipping Protection
All orders are shipped in double boxes and come with full insurance for additional protection. Items are usually shipped within 2-3 working days. We are based right here in the United States, and we use secure shipping methods for your peace of mind. For your protection, we may contact you for extra verification of the payment method.
The product will be delivered to your doorstep, carefully packed to avoid any damage. We understand that privacy is important to our customers, and we aim to provide DISCREET packaging. The product name, description, sender's name, or any details that could hint at the product inside will be encrypted to ensure privacy. The package you receive will be completely discreet.
Note: All orders above $250 will require a signature upon delivery.
Shipping Destinations
We currently ship to the following countries:
| United States |
Spain | Denmark | Slovak Republic | Latvia |
| Great Britain | Poland | Japan | Singapore | Finland |
| Canada | Portugal | Hungary | Lithuania | India |
| Germany | UAE | Australia | Slovenia | Estonia |
| France | Austria | Croatia | Bulgaria | Turkey |
| Netherlands | Belgium | Czech Republic | Luxembourg | Israel |
| Sweden | Italy | Ireland | Saudi Arabia | Switzerland |
Processing Time
Orders are processed within 1-3 business days.
Shipping Methods & Delivery Times
Delivery times are estimates and may vary depending on the customer's location, customs processing, weather conditions, or other unforeseen circumstances.
- Domestic orders: Usually take 3-5 business days to deliver.
- International orders: Usually delivered in 8-12 business days.
Shipping Costs
Shipping costs are calculated at checkout based on the shipping destination and selected shipping method. We offer free standard shipping within the United States.
Customs, Duties, and Taxes
International orders may be subject to customs duties, taxes, and import fees imposed by the destination country. These charges are the responsibility of the customer. Please check with your local customs office for more details.
Order Tracking
Once your order has shipped, you will receive a tracking number via email to monitor your shipment's progress.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team, and we will assist you in resolving the issue.
Returns & Refunds
For details on returns and refunds, please refer to our Return Policy page.
For any questions, feel free to contact our customer service team at support@toytooth.com.
Safety & Compliance
Safety & Compliance
⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
- Q: What is the operating voltage range for the Wishiot DS5160SSG servo? A: The operating voltage range for the Wishiot DS5160SSG servo is between 6V and 8.4V, with 7.4V being the optimal voltage for best performance.
- Q: How much torque can the Wishiot DS5160SSG servo handle? A: The Wishiot DS5160SSG servo can handle a stall torque of 58kg.cm at 6V, 65kg.cm at 7.4V, and 70kg.cm at 8.4V, making it suitable for high-torque applications.
- Q: Is the Wishiot DS5160SSG servo waterproof? A: Yes, the Wishiot DS5160SSG servo has an IP67 waterproof rating, which makes it suitable for use in wet environments, though it should not be submerged in water directly.
- Q: What control system does the Wishiot DS5160SSG servo use? A: The Wishiot DS5160SSG servo uses a PWM (Pulse Width Modulation) control system with a pulse width range of 500 to 2500 microseconds.
- Q: What applications are suitable for the Wishiot DS5160SSG servo? A: The Wishiot DS5160SSG servo is widely used in robotics, robotic arms, Baja cars, and various remote control projects, making it ideal for DIY enthusiasts.
