View compareWishiot DS5160SSG 60kg Servo RC Digital Servo DC6-8.4V Metal Gear Large Torque High Speed IP67 Waterproof Servo 270 Degree with
Wishiot DS5160SSG 60kg Servo RC Digital Servo DC6-8.4V Metal Gear Large Torque High Speed IP67 Waterproof Servo 270 Degree with
Hurry! Only left 10 in stock
Regular price
$43.79 USD
Sale price
$43.79 USD
Regular price
$62.56 USD
Unit price
per
Shipping calculated at checkout.
Sold by Toytooth, an authorized reseller.
Sold by ToyTooth — Your trusted kids' toy store.
Returns accepted within 30 days | support@toytooth.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 1–3 business days
- Estimated Delivery: 3–5 business days after dispatch
- Securely packed to ensure your purchase arrives in perfect condition
- Tracking number sent via email once dispatched
- Orders over $250 require signature upon delivery. Taxes calculated at checkout.
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · Item must be unused & in original packaging
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Safety & Compliance
⚠️
California Proposition 65 Warning
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
www.P65Warnings.ca.gov
🛒
General Product Safety Advisory
Always read the product label, instructions, and safety warnings before use. Do not use damaged or modified products. Store products in appropriate conditions as specified by the manufacturer.
Keep all products out of reach of children unless specifically designed for their use.
ℹ️
Product Authenticity & Notice
All products sold by ToyTooth are 100% authentic, sourced directly from trusted toy suppliers and brands. Product colors and dimensions may vary slightly from images due to screen calibration and manufacturing tolerances.
ToyTooth — Fun Toys for Every Kid, Delivered to Your Door.
Share
Couldn't load pickup availability
Guarantee safe and secure checkout
Description
Description

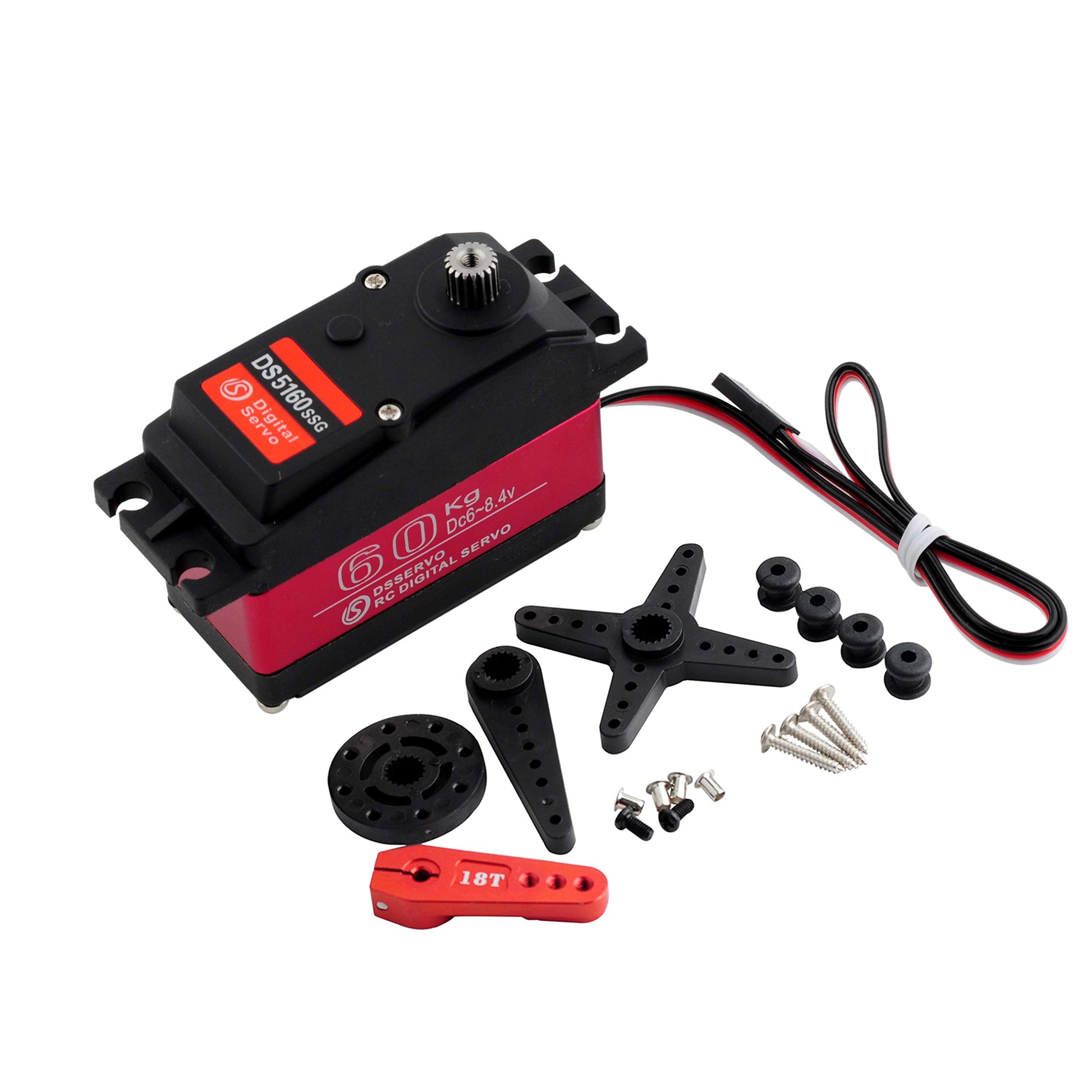

Apply Environmental Condition Storage Temperature Range: -30?~80? Operating Temperature Range: -15?~70? Operating Voltage Range: 6-8.4V Mechanical Specification Size: 65*30*48mm Weight: 158g Gear ratio: 279 Bearing: Double bearing Connector wire: 3005mm Motor: 3-pole(s) Waterproof performance: IP67 Electrical Specification Operating Voltage 6V 7.4V 8.4V Idle current(at stopped) 4mA 5mA 6mA Operating speed (at no load) 0.17 sec/60 0.15sec/60 0.13sec/60 Stall torque (at locked) 58kg.cm.@6V, 65kg.cm.@7.4V, 70kg.cm.@8.4V Stall current (at locked) 3.5A 5A 6.2A Control Specification Control System: PWM(Pulse width modification) Pulse width range: 500~2500sec Neutral position: 1500sec Running degree: 270 (when 500~2500 sec) Dead band width: 3 sec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500~2500 sec) Package Included: 1 X DS5160SSG 60KG Digital Servo 1 X 18T Aluminum Servo Arm 1 X Servo Horn accessories
Frequently Asked Questions

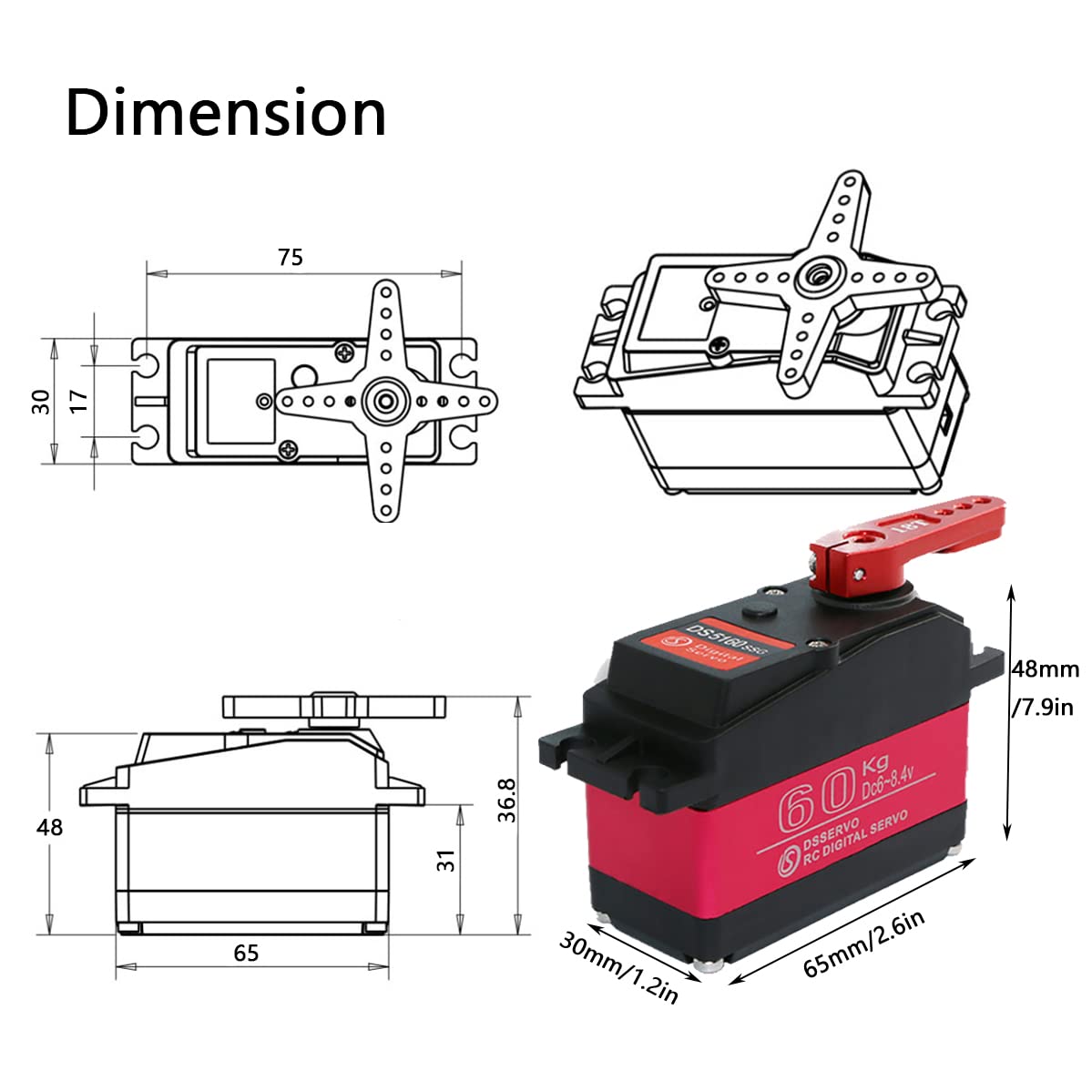

- Q: What are the dimensions of the Wishiot DS5160SSG servo? A: The servo measures sixty-five millimeters long, thirty millimeters wide, and forty-eight millimeters tall.
- Q: What is the weight of the Wishiot DS5160SSG servo? A: The weight of the servo is one hundred fifty-eight grams.
- Q: What is the operating voltage range for this servo? A: The operating voltage range is between six volts and eight point four volts.
- Q: What is the gear ratio of the Wishiot DS5160SSG servo? A: The gear ratio is two hundred seventy.
- Q: How much torque can the Wishiot DS5160SSG servo produce? A: The servo can produce stall torque of fifty-eight kilogram centimeters at six volts, sixty-five kilogram centimeters at seven point four volts, and seventy kilogram centimeters at eight point four volts.
- Q: What type of control system does the Wishiot DS5160SSG servo use? A: It uses a PWM (Pulse Width Modulation) control system.

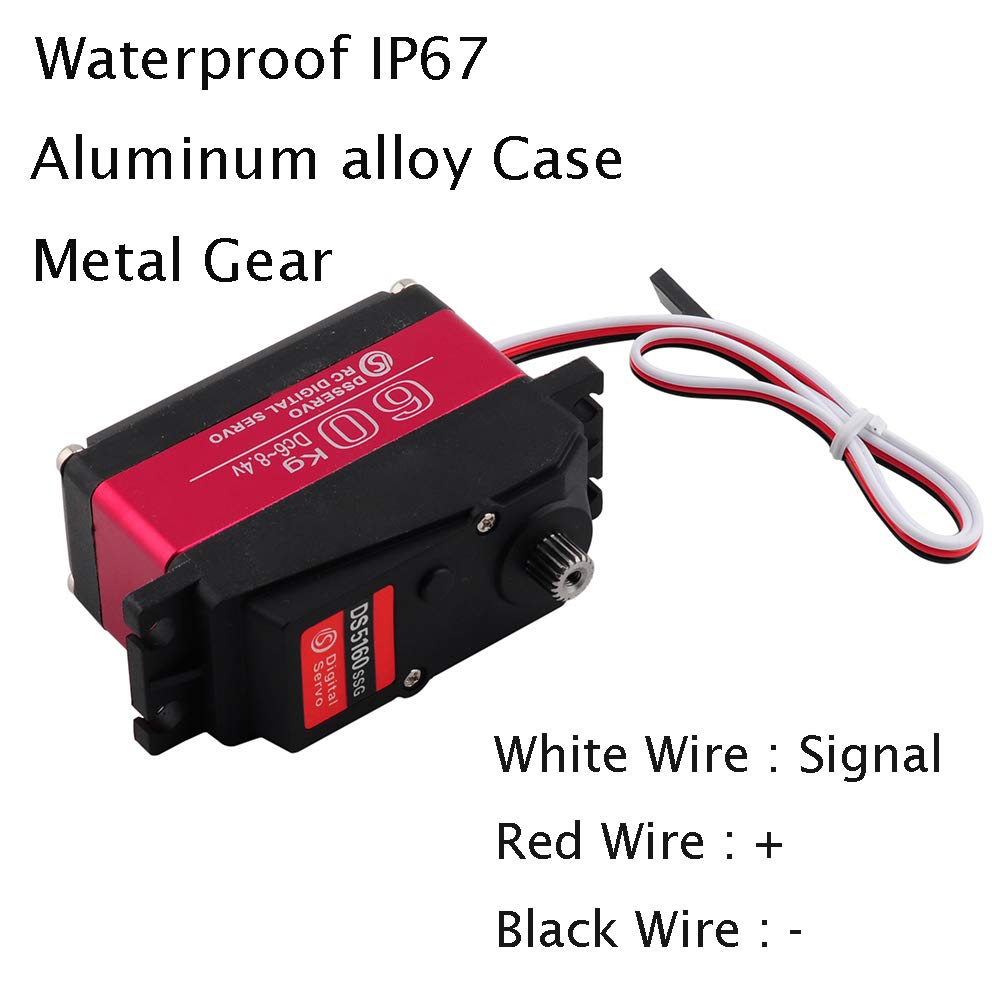

- Q: How do I connect the wires to this servo? A: Connect the red wire to positive, the black wire to negative, and the white wire for signal.
- Q: What is the maximum operating speed of the Wishiot DS5160SSG servo? A: The maximum operating speed is zero point seventeen seconds per sixty degrees at no load.
- Q: Is the Wishiot DS5160SSG servo waterproof? A: Yes, it has an IP67 waterproof rating, making it suitable for wet environments.
- Q: How do I install the Wishiot DS5160SSG servo for my project? A: Simply connect the wires according to the color coding and secure the servo in place using the included mounting hardware.
- Q: Is the Wishiot DS5160SSG servo suitable for beginners? A: Yes, it is user-friendly and widely used in DIY projects, robotics, and remote control toys.
- Q: What type of projects can I use the Wishiot DS5160SSG servo for? A: It is commonly used in robotics, robotic arms, Baja cars, and other remote control applications.
- Q: How do I keep the Wishiot DS5160SSG servo in good condition? A: Store it in a cool, dry place, and avoid exposing it to extreme temperatures to maintain its performance.
- Q: What should I do if the servo does not work after installation? A: Check all connections, ensure the power supply is within the operating voltage range, and verify that the control signal is correct.

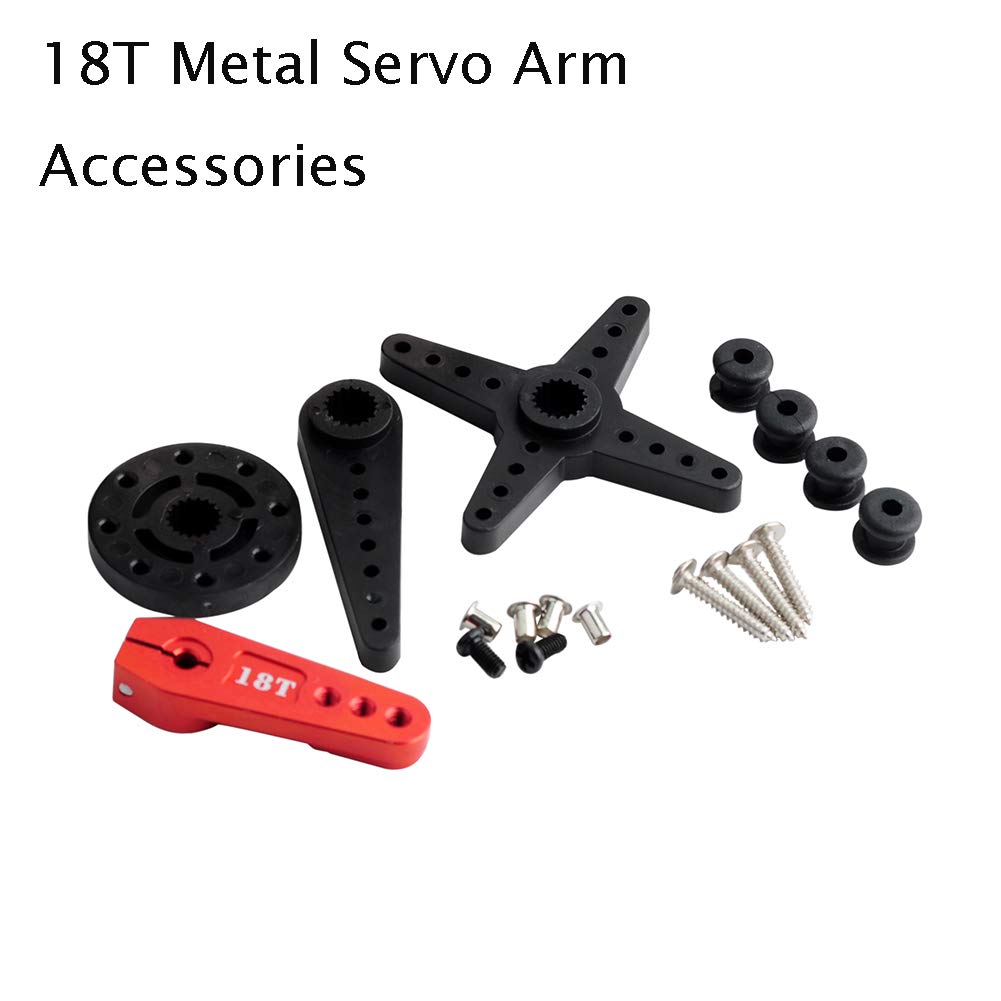

- Q: Does the Wishiot DS5160SSG servo come with accessories? A: Yes, it includes an eighteen-tooth aluminum servo arm and a servo horn for easy installation.
- Q: What is the dead band width of the Wishiot DS5160SSG servo? A: The dead band width is three microseconds.
