View compareWishiot TD-8125MG 25KG Digital Servo 360 Degree Waterproof Large Torque Metal Gear for DIY Robot Robotic Arm RC Model PWM 500s-2

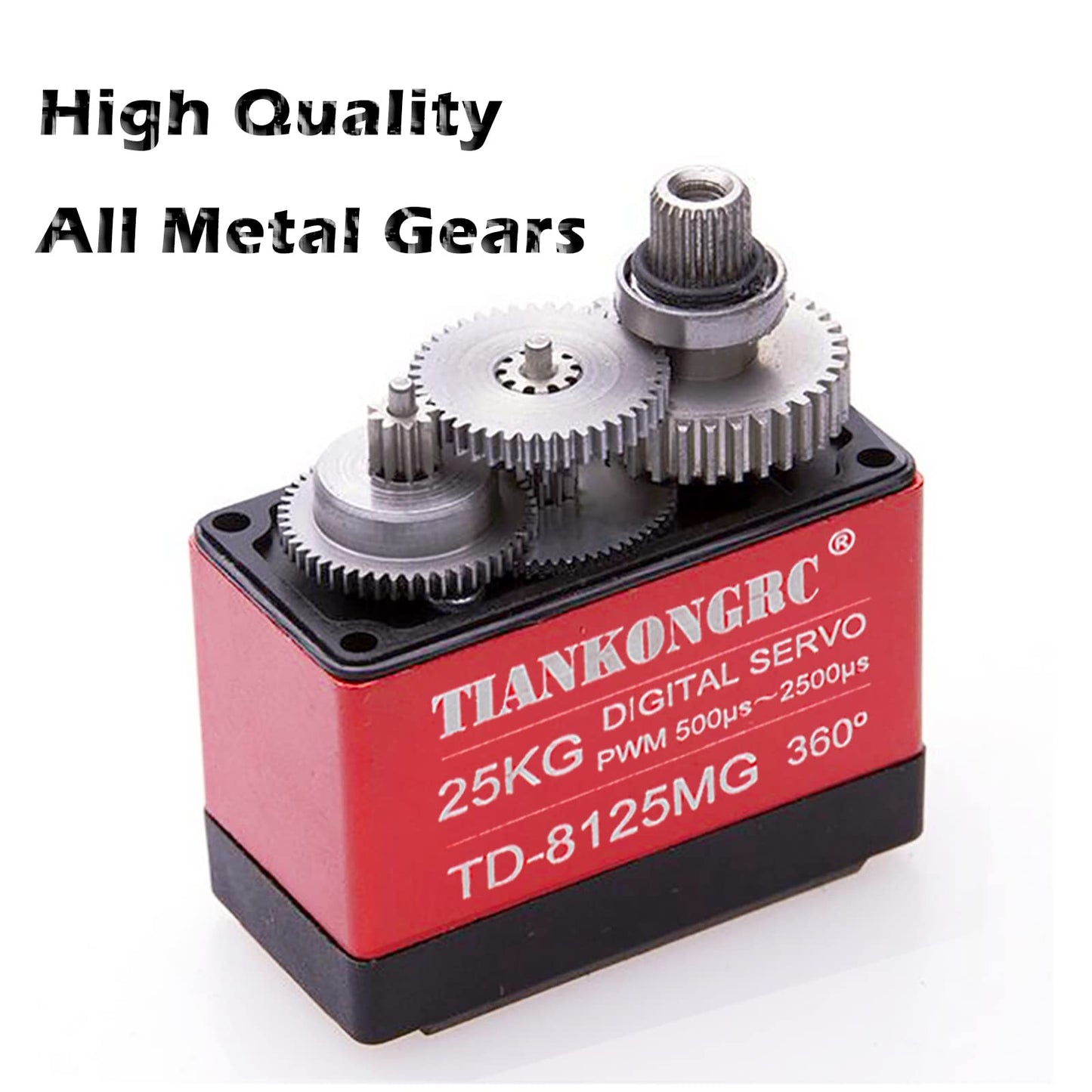

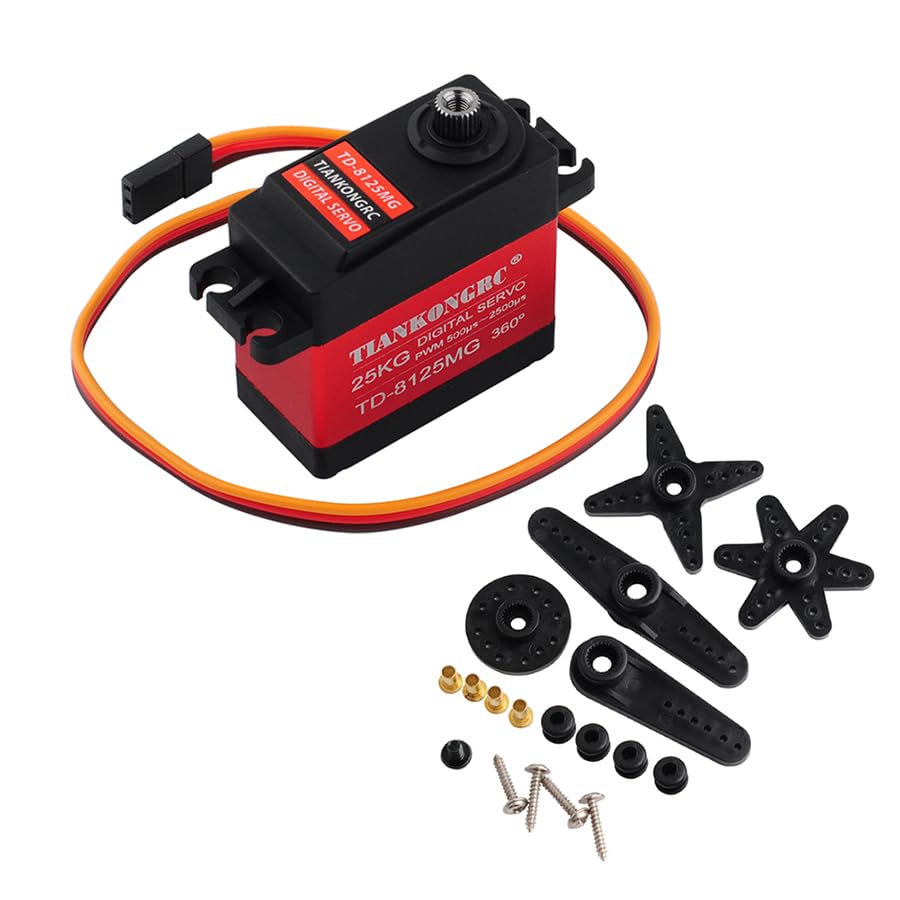

Wishiot TD-8125MG 25KG Digital Servo 360 Degree Waterproof Large Torque Metal Gear for DIY Robot Robotic Arm RC Model PWM 500s-2
Hurry! Only left 10 in stock
SKU
WBTOYB08JCT4P3BVendor
WishiotProduct Type
RC Cars & Trucks
Regular price
$30.29 USD
Sale price
$30.29 USD
Regular price
$43.27 USD
Unit price
per
Shipping calculated at checkout.
Share
Couldn't load pickup availability
Estimated delivery: 3-5 days(United States), 8-12 days (International).
Return within 15 days after Delivery. Duties & taxes are non-refundable.
Guarantee safe and secure checkout
Description
Description

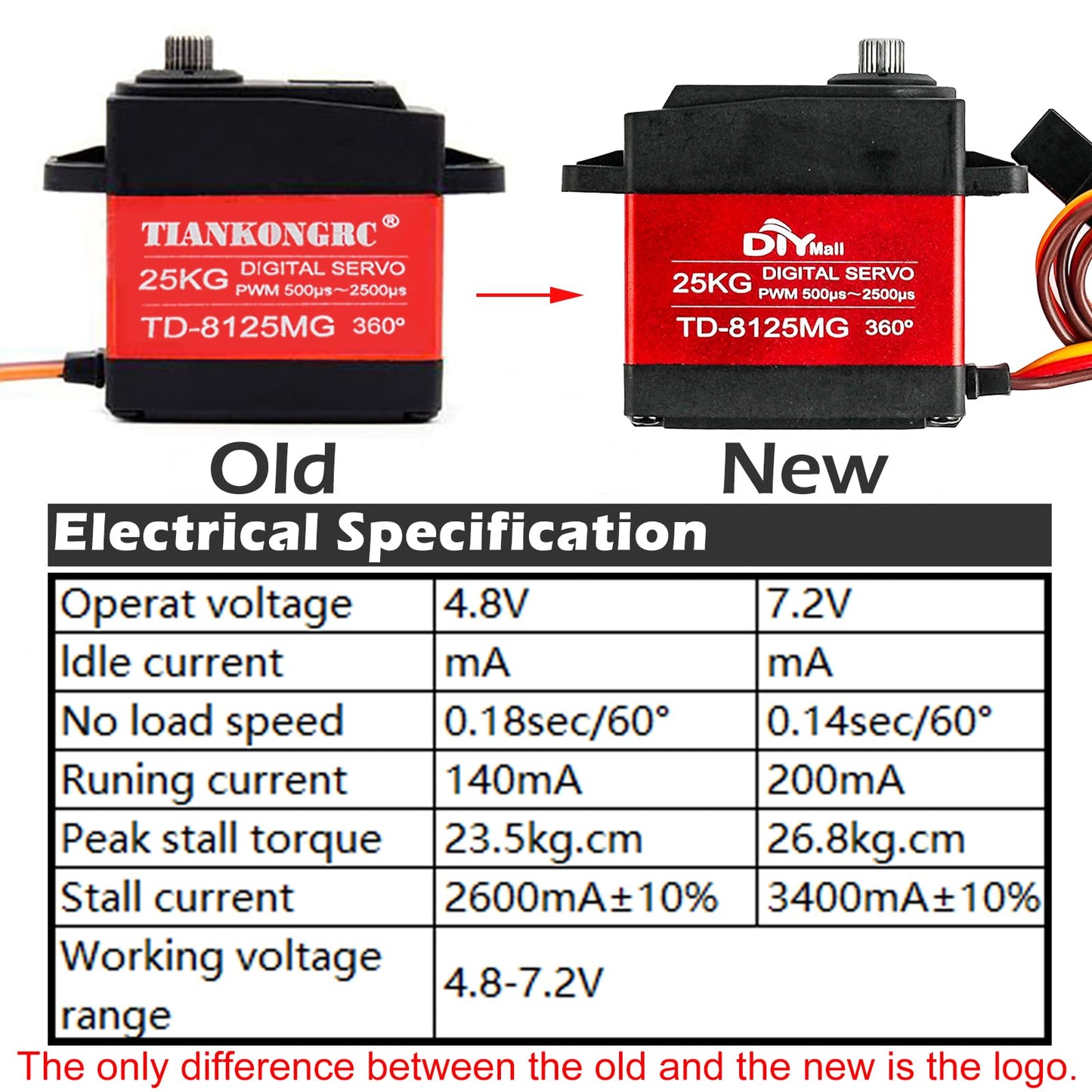

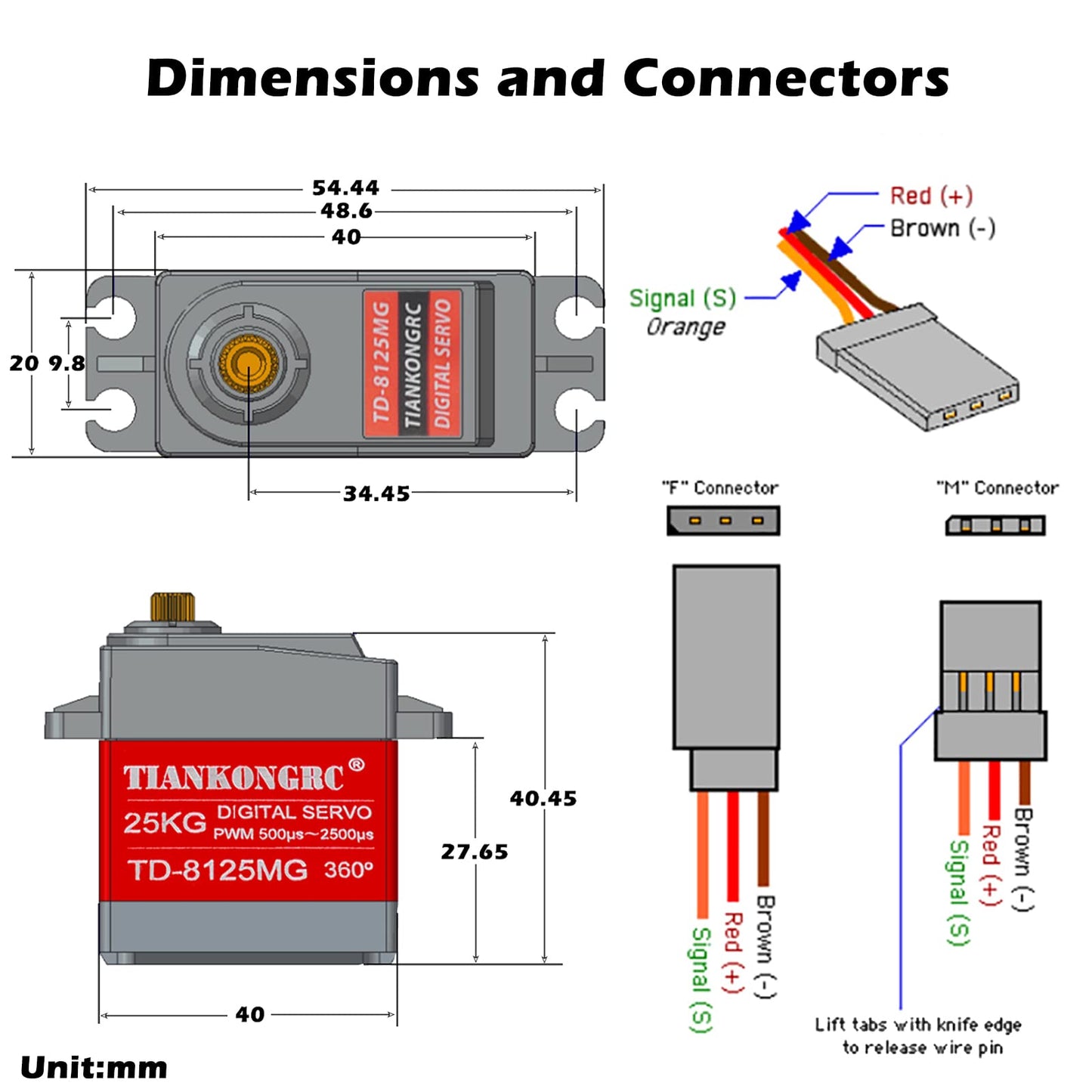

Specification parameter Storage Temperature Range:-30C~80C Operating Temperature Range:-25C~70C Temperature Range:-25C~70C Humidity Range:65%10% Size:40.0*20.5*40.5mm Weight:56g5% Gear type:5 Metal Limit angle:360 Bearing:2BB Horn gear spline:25T OD:5.9mm Horn type:Plastic, POM Case:Engineering plastics(PBT)+Aluminum alloy Connector wire:320mm5mm Motor:Carbon brush motor Splash water resistance:No Operat voltage:4.8V-7.2V Idlecurrent:mA Noload speed:0.18sec/60-0.14sec/60 Runnig current:140mA-200mA Peak stall torque:23.5kg.cm-26.8kg.cm Stall current:2600mA10%-3400mA10% Working voltage range:4.8-7.2V Command signal:Pulse width modification Amplifier type:Digital controller Pulse width range:500~2500usec Neutral position:1500usec Running degree:1803(when 500~2500usec) Deadband width:5 usec Rotating direction:Counterclockwise (when 1000~2000usec)
Shipping Information
Shipping Information
Shipping Information for Toytooth
Packaging & Shipping Protection
All orders are shipped in double boxes and come with full insurance for additional protection. Items are usually shipped within 2-3 working days. We are based right here in the United States, and we use secure shipping methods for your peace of mind. For your protection, we may contact you for extra verification of the payment method.
The product will be delivered to your doorstep, carefully packed to avoid any damage. We understand that privacy is important to our customers, and we aim to provide DISCREET packaging. The product name, description, sender's name, or any details that could hint at the product inside will be encrypted to ensure privacy. The package you receive will be completely discreet.
Note: All orders above $250 will require a signature upon delivery.
Shipping Destinations
We currently ship to the following countries:
| United States |
Spain | Denmark | Slovak Republic | Latvia |
| Great Britain | Poland | Japan | Singapore | Finland |
| Canada | Portugal | Hungary | Lithuania | India |
| Germany | UAE | Australia | Slovenia | Estonia |
| France | Austria | Croatia | Bulgaria | Turkey |
| Netherlands | Belgium | Czech Republic | Luxembourg | Israel |
| Sweden | Italy | Ireland | Saudi Arabia | Switzerland |
Processing Time
Orders are processed within 1-3 business days.
Shipping Methods & Delivery Times
Delivery times are estimates and may vary depending on the customer's location, customs processing, weather conditions, or other unforeseen circumstances.
- Domestic orders: Usually take 3-5 business days to deliver.
- International orders: Usually delivered in 8-12 business days.
Shipping Costs
Shipping costs are calculated at checkout based on the shipping destination and selected shipping method. We offer free standard shipping within the United States.
Customs, Duties, and Taxes
International orders may be subject to customs duties, taxes, and import fees imposed by the destination country. These charges are the responsibility of the customer. Please check with your local customs office for more details.
Order Tracking
Once your order has shipped, you will receive a tracking number via email to monitor your shipment's progress.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team, and we will assist you in resolving the issue.
Returns & Refunds
For details on returns and refunds, please refer to our Return Policy page.
For any questions, feel free to contact our customer service team at support@toytooth.com.
Safety & Compliance
Safety & Compliance
⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
- Q: What is the maximum torque of the Wishiot TD-8125MG servo? A: The Wishiot TD-8125MG 25KG Digital Servo offers a peak stall torque ranging from 23.5 kg.cm to 26.8 kg.cm, making it suitable for high-torque applications in DIY robotics and RC models.
- Q: What is the operating voltage range for this servo motor? A: The operating voltage range for the Wishiot TD-8125MG servo is between 4.8V and 7.2V, allowing it to be compatible with various power sources commonly used in robotics.
- Q: Is the Wishiot TD-8125MG servo suitable for outdoor use? A: While the Wishiot TD-8125MG servo is designed with a waterproof construction, it is important to note that it is splash water resistant but not fully waterproof. Care should be taken to protect it from heavy rain or submersion.
- Q: What type of control signal does the TD-8125MG servo respond to? A: The Wishiot TD-8125MG servo operates using pulse width modulation (PWM) with a pulse width range of 500 to 2500 microseconds, allowing precise control over its movements.

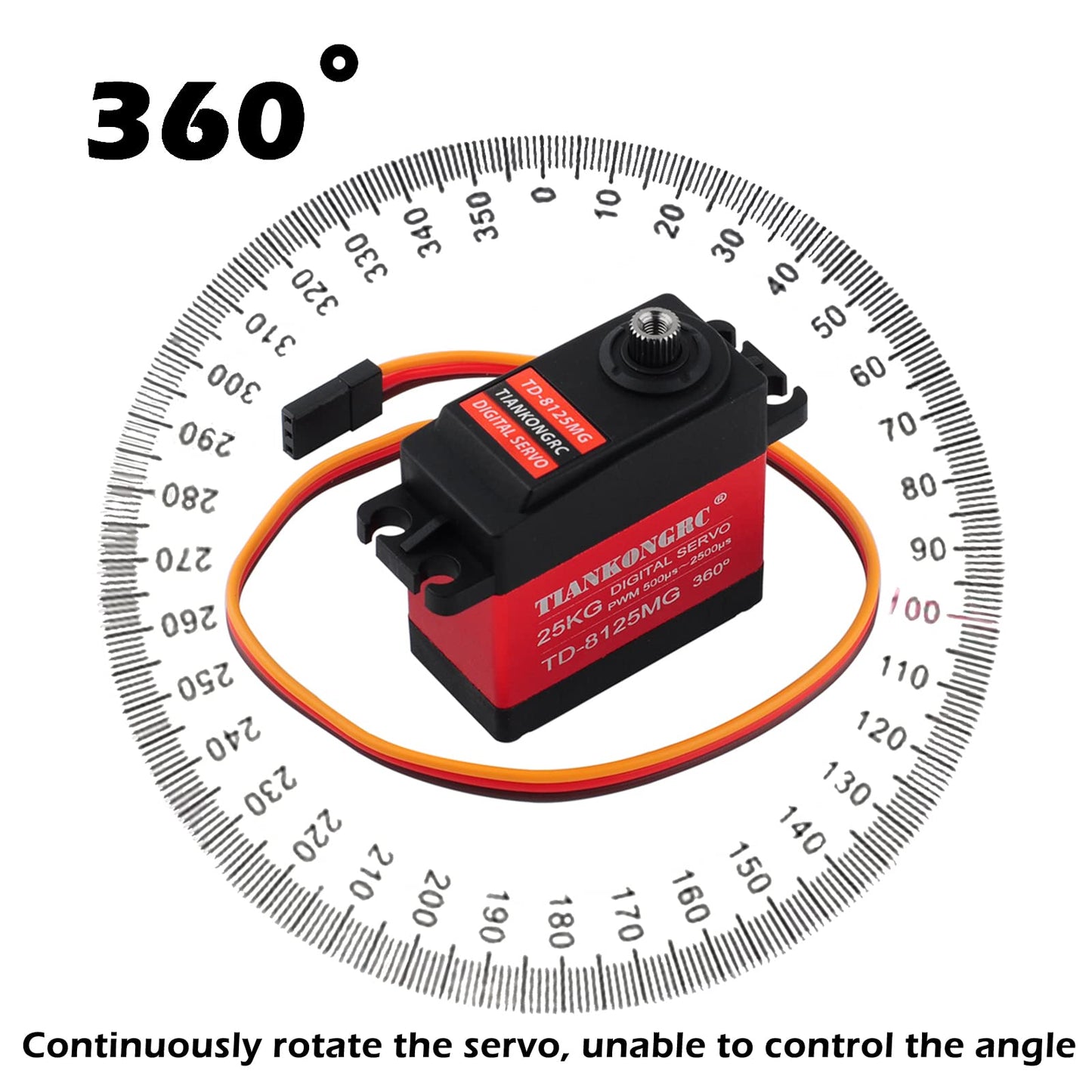

- Q: Can the Wishiot TD-8125MG servo be used in robotic arms? A: Yes, the Wishiot TD-8125MG servo is widely used in robotic arms and other DIY robotics projects due to its high torque, 360-degree rotation capability, and robust metal gear construction.
