View compareWishiot TD-8125MG 25KG Digital Servo 360 Degree Waterproof Large Torque Metal Gear for DIY Robot Robotic Arm RC Model PWM 500s-2
Wishiot TD-8125MG 25KG Digital Servo 360 Degree Waterproof Large Torque Metal Gear for DIY Robot Robotic Arm RC Model PWM 500s-2
Hurry! Only left 10 in stock
Regular price
$29.91 USD
Sale price
$29.91 USD
Regular price
$42.73 USD
Unit price
per
Shipping calculated at checkout.
Sold by Toytooth, an authorized reseller.
Sold by ToyTooth — Your trusted kids' toy store.
Returns accepted within 30 days | support@toytooth.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 1–3 business days
- Estimated Delivery: 3–5 business days after dispatch
- Securely packed to ensure your purchase arrives in perfect condition
- Tracking number sent via email once dispatched
- Orders over $250 require signature upon delivery. Taxes calculated at checkout.
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · Item must be unused & in original packaging
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Safety & Compliance
⚠️
California Proposition 65 Warning
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
www.P65Warnings.ca.gov
🛒
General Product Safety Advisory
Always read the product label, instructions, and safety warnings before use. Do not use damaged or modified products. Store products in appropriate conditions as specified by the manufacturer.
Keep all products out of reach of children unless specifically designed for their use.
ℹ️
Product Authenticity & Notice
All products sold by ToyTooth are 100% authentic, sourced directly from trusted toy suppliers and brands. Product colors and dimensions may vary slightly from images due to screen calibration and manufacturing tolerances.
ToyTooth — Fun Toys for Every Kid, Delivered to Your Door.
Share
Couldn't load pickup availability
Guarantee safe and secure checkout
Description
Description

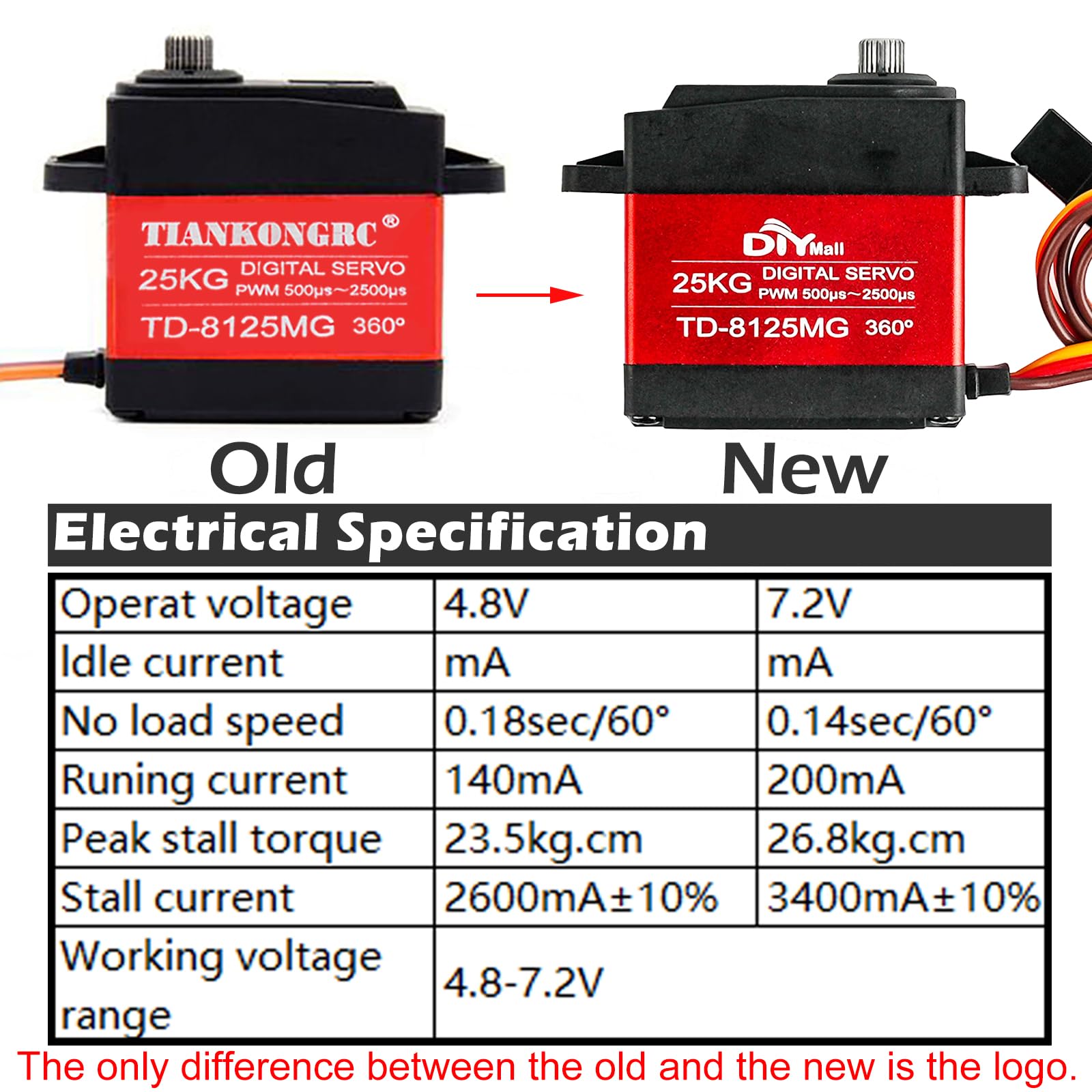

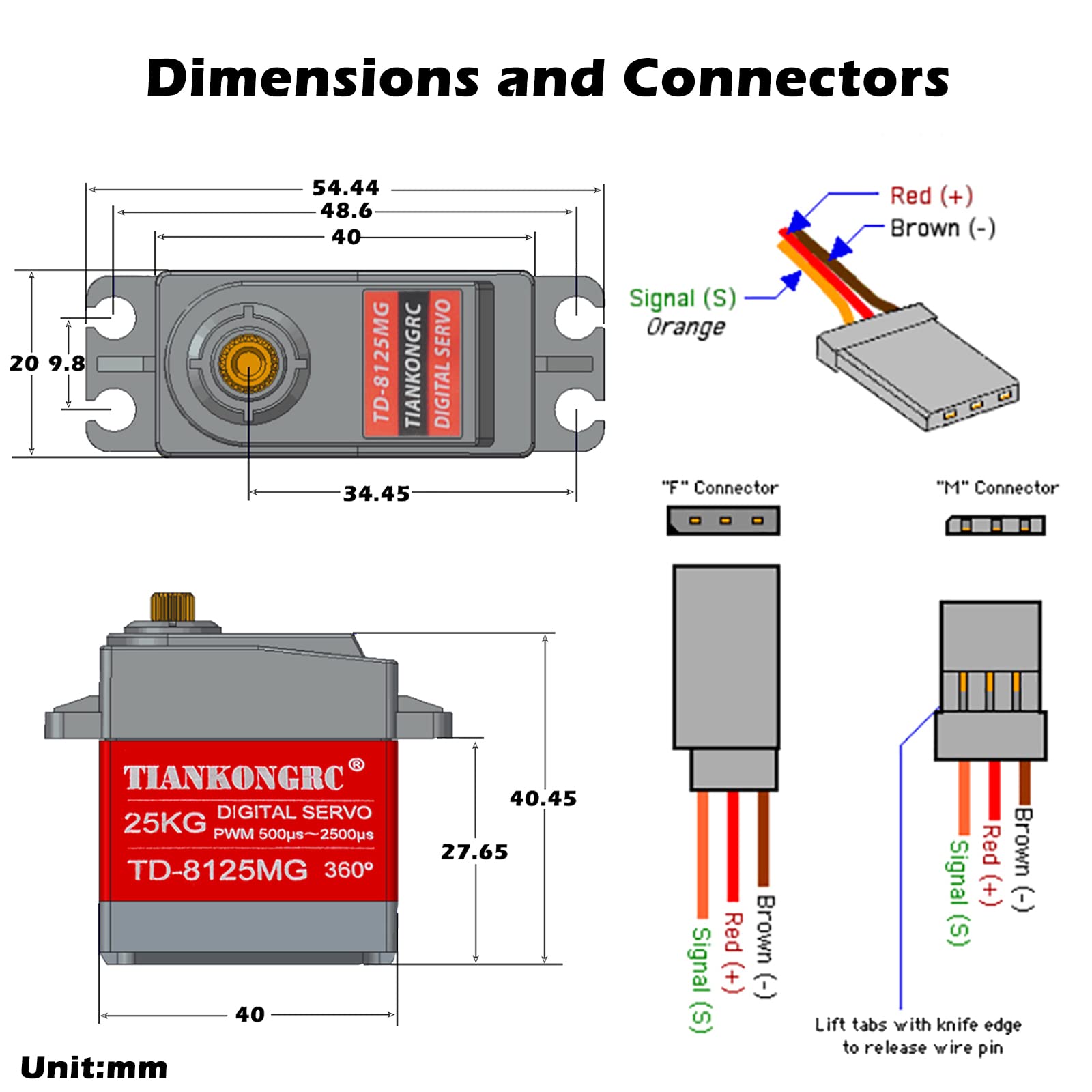

Specification parameter Storage Temperature Range:-30C~80C Operating Temperature Range:-25C~70C Temperature Range:-25C~70C Humidity Range:65%10% Size:40.0*20.5*40.5mm Weight:56g5% Gear type:5 Metal Limit angle:360 Bearing:2BB Horn gear spline:25T OD:5.9mm Horn type:Plastic, POM Case:Engineering plastics(PBT)+Aluminum alloy Connector wire:320mm5mm Motor:Carbon brush motor Splash water resistance:No Operat voltage:4.8V-7.2V Idlecurrent:mA Noload speed:0.18sec/60-0.14sec/60 Runnig current:140mA-200mA Peak stall torque:23.5kg.cm-26.8kg.cm Stall current:2600mA10%-3400mA10% Working voltage range:4.8-7.2V Command signal:Pulse width modification Amplifier type:Digital controller Pulse width range:500~2500usec Neutral position:1500usec Running degree:1803(when 500~2500usec) Deadband width:5 usec Rotating direction:Counterclockwise (when 1000~2000usec)
Frequently Asked Questions
- Q: What are the dimensions of the Wishiot TD-8125MG servo? A: The Wishiot TD-8125MG servo measures forty millimeters by twenty millimeters by forty point five millimeters.
- Q: What is the weight of the Wishiot TD-8125MG servo? A: The weight of the Wishiot TD-8125MG servo is fifty-six grams plus or minus five percent.
- Q: What materials are used in the Wishiot TD-8125MG servo? A: The servo is made from engineering plastics, including PBT, and features an aluminum alloy case.
- Q: What is the operating voltage range for the servo? A: The Wishiot TD-8125MG servo operates within a voltage range of four point eight to seven point two volts.
- Q: What is the peak stall torque of the servo? A: The peak stall torque of the Wishiot TD-8125MG servo ranges from twenty-three point five to twenty-six point eight kilogram centimeters.

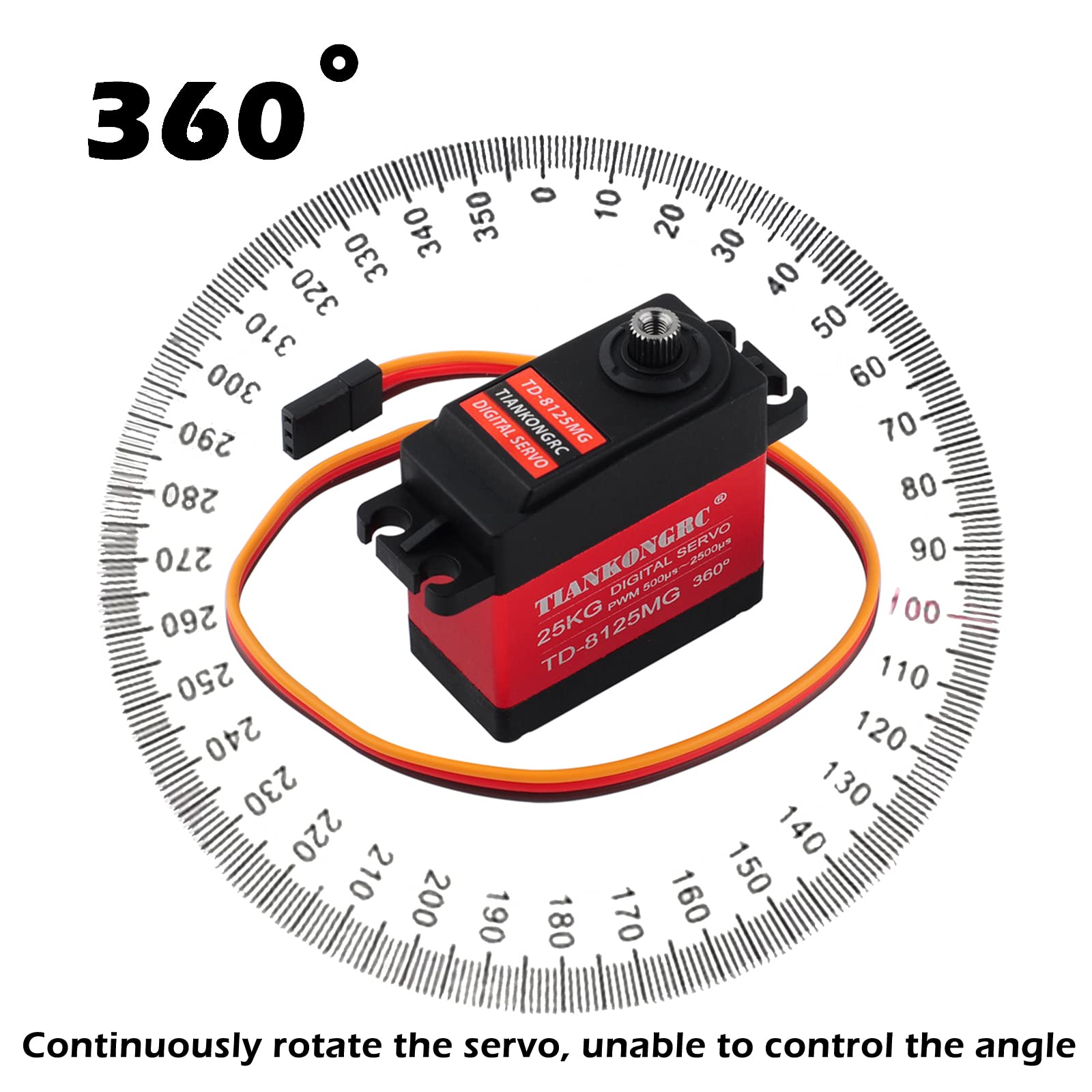

- Q: How does the Wishiot TD-8125MG servo rotate? A: The servo provides a full three hundred sixty-degree rotation, making it suitable for various applications.
- Q: How do I install the Wishiot TD-8125MG servo? A: To install the servo, connect the wires to your control system, ensuring the pulse width signal is set appropriately.
- Q: Is the Wishiot TD-8125MG servo suitable for beginners? A: Yes, the Wishiot TD-8125MG servo is suitable for beginners in DIY robotics due to its straightforward installation and operation.
- Q: Can I use the Wishiot TD-8125MG servo outdoors? A: While the servo is waterproof, it is not splash-resistant; therefore, it should be used in dry conditions.
- Q: How can I maintain the Wishiot TD-8125MG servo? A: To maintain the servo, ensure it is kept dry and free from debris, and store it in a cool, dry place.
- Q: What should I do if the servo arrives damaged? A: If the Wishiot TD-8125MG servo arrives damaged, contact customer support for a replacement or return instructions.
- Q: Does the servo have a warranty? A: Yes, the Wishiot TD-8125MG servo typically comes with a warranty; please check the packaging for specific details.
- Q: Is the Wishiot TD-8125MG servo safe for kids? A: The Wishiot TD-8125MG servo is designed for hobby use and should be operated under adult supervision for safety.
- Q: What type of motor does the servo use? A: The Wishiot TD-8125MG servo uses a carbon brush motor for efficient operation and control.
- Q: What is the deadband width for the servo? A: The deadband width for the Wishiot TD-8125MG servo is five microseconds.
