View compareANNIMOS 35KG Coreless Digital Motor Servo 7.4V High Speed High Torque Stainless Steel Gear Waterproof Standard Baja Servos 180 D
ANNIMOS 35KG Coreless Digital Motor Servo 7.4V High Speed High Torque Stainless Steel Gear Waterproof Standard Baja Servos 180 D
Hurry! Only left 10 in stock
SKU
WBTOYB07SWW9NDRVendor
ANNIMOSProduct Type
RC Cars & Trucks
Regular price
$36.76 USD
Sale price
$36.76 USD
Regular price
$52.51 USD
Unit price
per
Shipping calculated at checkout.
Share
Couldn't load pickup availability
Estimated delivery: 3-5 days(United States), 8-12 days (International).
Return within 15 days after Delivery. Duties & taxes are non-refundable.
Guarantee safe and secure checkout
Description
Description

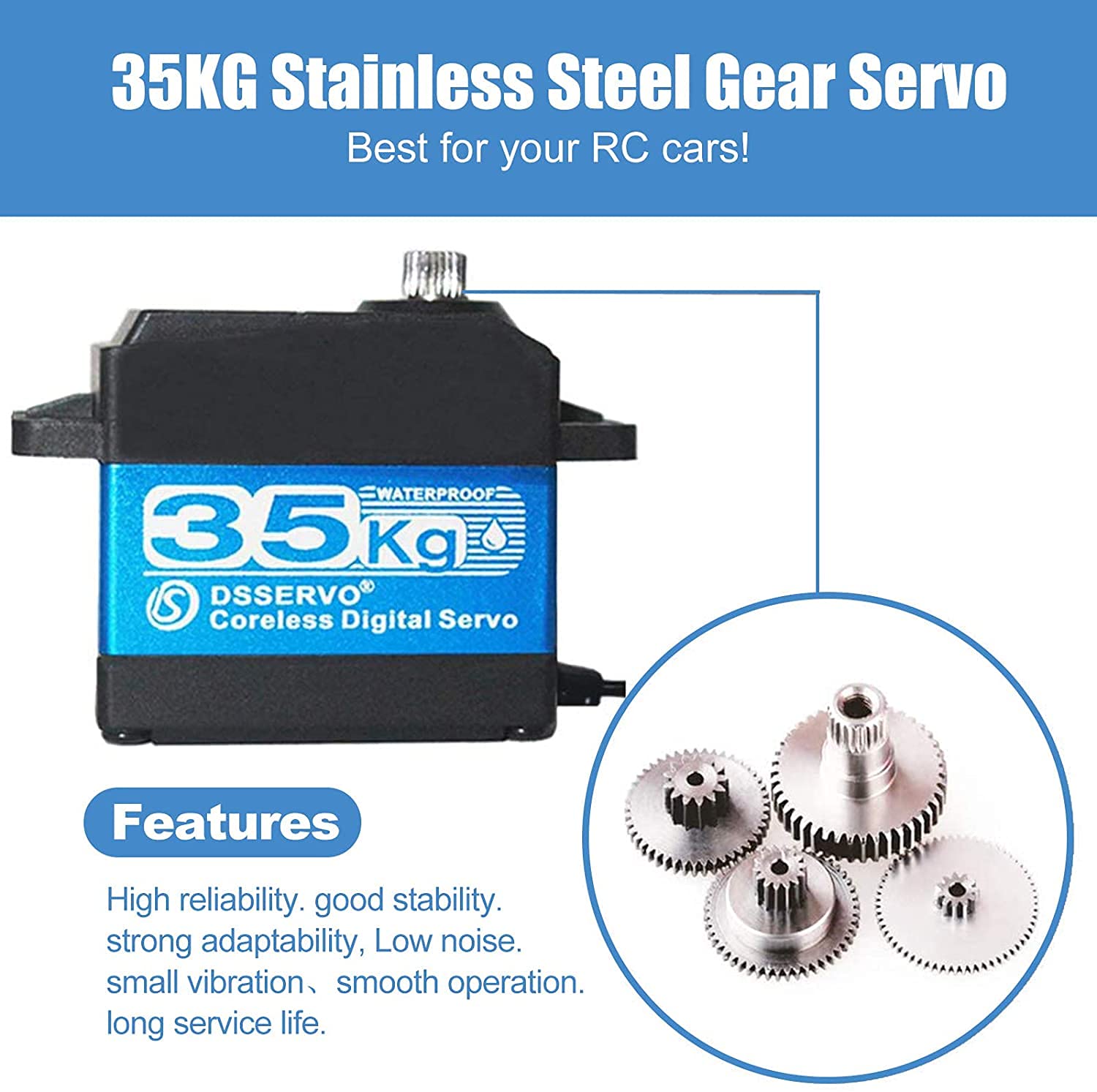

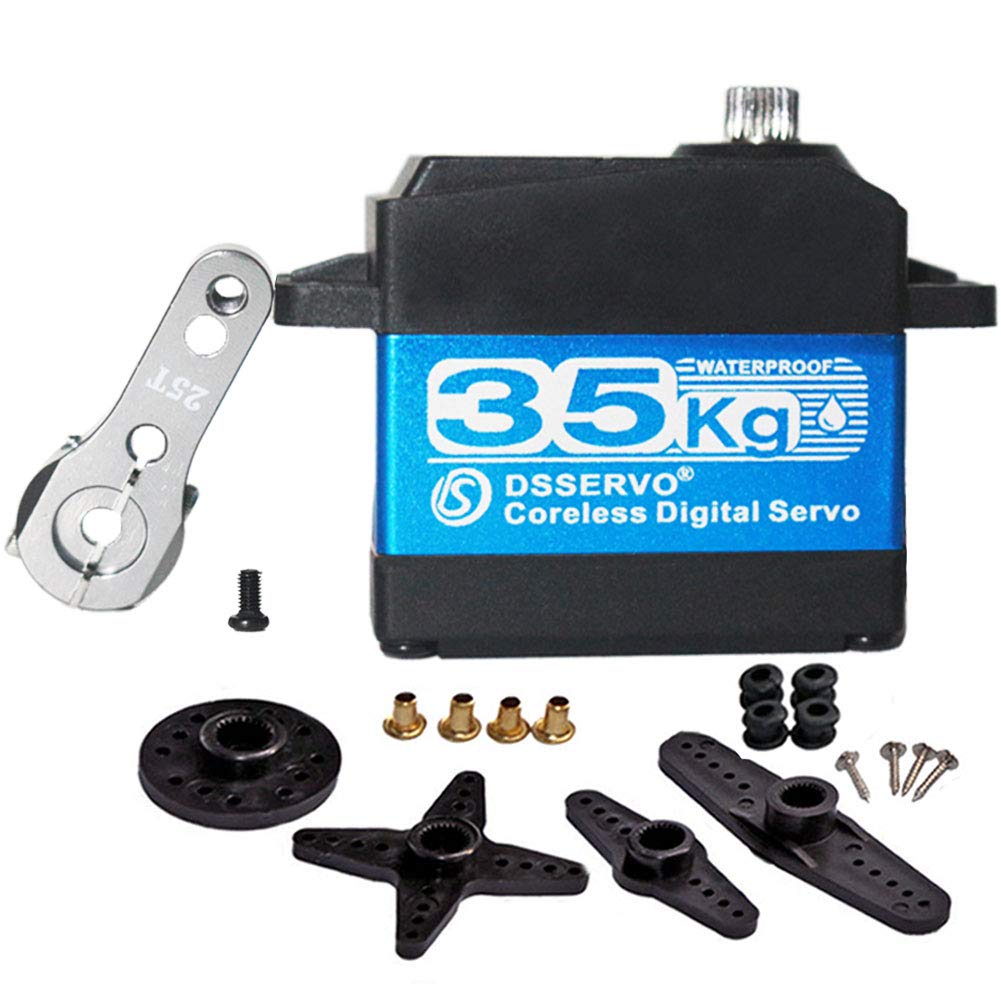

Electrical Specification: Operating voltage range: 5-8.4 Volts Operating speed at no load ( 5V ): 0.18 sec/60 Operating speed at no load ( 7.4V ): 0.13 sec/60 Operating speed at no load ( 8.4V ): 0.11 sec/60 Stall torque at locked ( 5V ): 23kg.cm(319.4oz-in) Stall torque at locked ( 7.4V ): 30kg.cm(416.6oz-in) Stall torque at locked ( 8.4V ): 35kg.cm(486oz-in) Stall current at locked ( 5V ): 2.2A Stall current at locked ( 7.4V ): 2.9A Stall current at locked ( 8.4V ): 3.2A Idle current at stopped (5/7.4/8.4V): 5mA Control Specification: Control System: PWM (Pulse width modification) Pulse width range: 500-2500sec Neutral position: 1500sec Running degree: 180 (when 500-2500sec) Dead band width: 2sec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (When 1500-2500sec) Product Specification: Suitable for: for 1/8 1/10 1/12 Scale RC Cars, Trucks Motor Type: Coreless Motor Gear Type: Stainless Steel Spline:25T Gear ratio: 342 Bearing:Double Bearing Waterproof Performance:IP67 Connector Wire: 17.7in (450mm) Size: 1.57*0.79*1.59inch(40 * 20 * 38.5mm) Weight: 2.11oz (60g) CE /RoHs: Yes Packing List: 1*DS3235SG 35kg Servo 1*25T Adjustable Metal Servo Arm One Set of Plastic Accessories (As Shown on The Picture)
Shipping Information
Shipping Information
Shipping Information for Toytooth
Packaging & Shipping Protection
All orders are shipped in double boxes and come with full insurance for additional protection. Items are usually shipped within 2-3 working days. We are based right here in the United States, and we use secure shipping methods for your peace of mind. For your protection, we may contact you for extra verification of the payment method.
The product will be delivered to your doorstep, carefully packed to avoid any damage. We understand that privacy is important to our customers, and we aim to provide DISCREET packaging. The product name, description, sender's name, or any details that could hint at the product inside will be encrypted to ensure privacy. The package you receive will be completely discreet.
Note: All orders above $250 will require a signature upon delivery.
Shipping Destinations
We currently ship to the following countries:
| United States |
Spain | Denmark | Slovak Republic | Latvia |
| Great Britain | Poland | Japan | Singapore | Finland |
| Canada | Portugal | Hungary | Lithuania | India |
| Germany | UAE | Australia | Slovenia | Estonia |
| France | Austria | Croatia | Bulgaria | Turkey |
| Netherlands | Belgium | Czech Republic | Luxembourg | Israel |
| Sweden | Italy | Ireland | Saudi Arabia | Switzerland |
Processing Time
Orders are processed within 1-3 business days.
Shipping Methods & Delivery Times
Delivery times are estimates and may vary depending on the customer's location, customs processing, weather conditions, or other unforeseen circumstances.
- Domestic orders: Usually take 3-5 business days to deliver.
- International orders: Usually delivered in 8-12 business days.
Shipping Costs
Shipping costs are calculated at checkout based on the shipping destination and selected shipping method. We offer free standard shipping within the United States.
Customs, Duties, and Taxes
International orders may be subject to customs duties, taxes, and import fees imposed by the destination country. These charges are the responsibility of the customer. Please check with your local customs office for more details.
Order Tracking
Once your order has shipped, you will receive a tracking number via email to monitor your shipment's progress.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team, and we will assist you in resolving the issue.
Returns & Refunds
For details on returns and refunds, please refer to our Return Policy page.
For any questions, feel free to contact our customer service team at support@toytooth.com.
Safety & Compliance
Safety & Compliance
⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
- Q: What is the operating voltage range for the ANNIMOS 35KG servo? A: The ANNIMOS 35KG Coreless Digital Motor Servo operates within a voltage range of 5 to 8.4 volts.

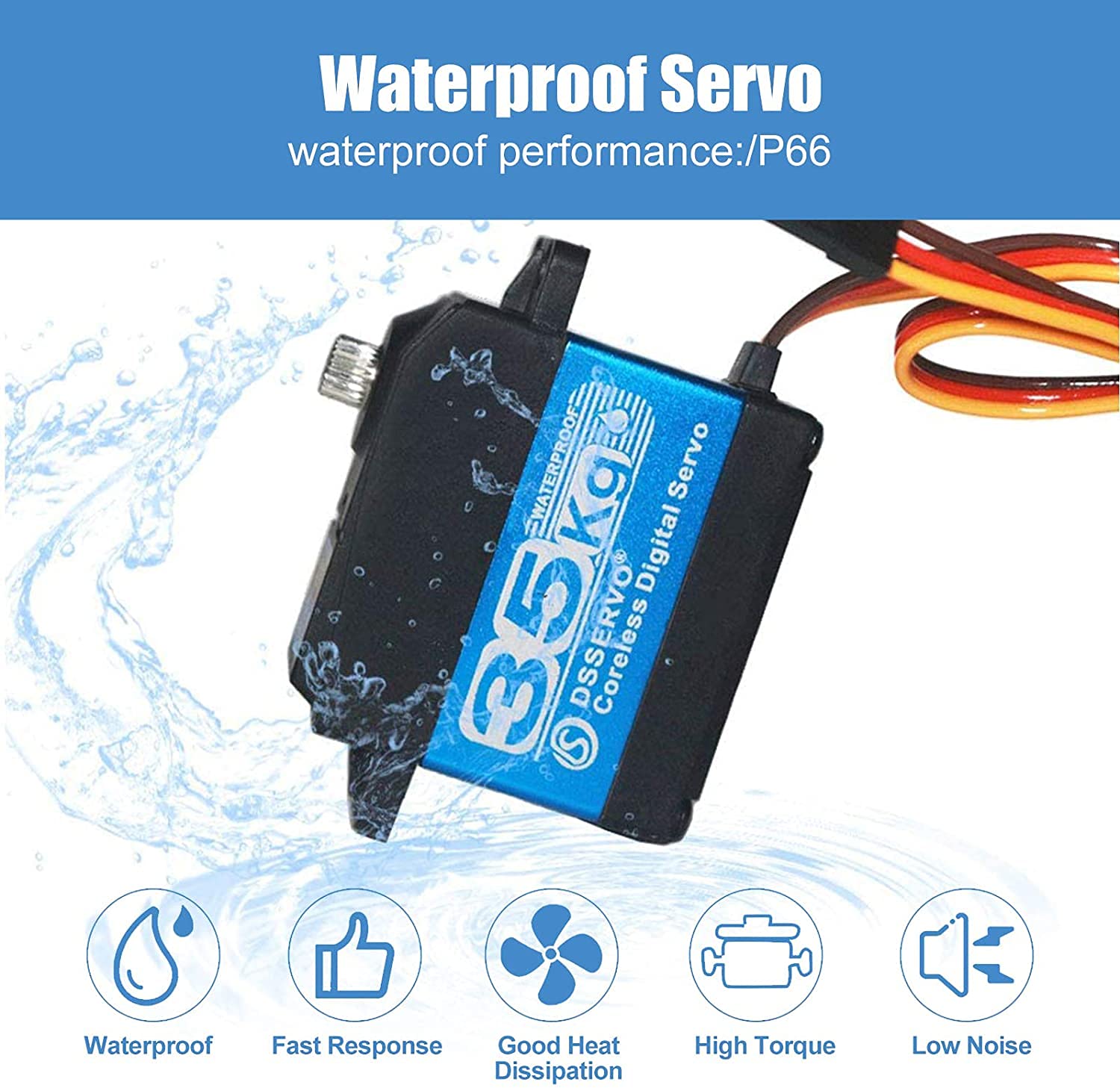

- Q: Is the ANNIMOS servo waterproof? A: Yes, this servo has an IP67 waterproof rating, making it suitable for wet conditions and ensuring good water tightness.
- Q: What types of RC vehicles is the ANNIMOS servo compatible with? A: The ANNIMOS 35KG servo is suitable for 1/8, 1/10, and 1/12 scale RC cars, trucks, crawlers, and buggies.
- Q: How fast can the ANNIMOS servo operate? A: At 7.4V, the servo has an operating speed of 0.13 seconds for 60 degrees, providing high-speed performance for your RC applications.
- Q: What materials are used in the construction of the ANNIMOS servo? A: The servo features a coreless motor with stainless steel gears, ensuring durability and reliability in performance.
