View compareHosyond 10 Pack Servo Motors SG90 9G Micro Servo for RC Robot Helicopter Airplane Boat Remote Control Toys, Servo for Arduino Pr
Hosyond 10 Pack Servo Motors SG90 9G Micro Servo for RC Robot Helicopter Airplane Boat Remote Control Toys, Servo for Arduino Pr
Hurry! Only left 10 in stock
SKU
WBTOYB09GFN98X9Vendor
HosyondProduct Type
RC Cars & Trucks
Regular price
$21.57 USD
Sale price
$21.57 USD
Regular price
$30.81 USD
Unit price
per
Shipping calculated at checkout.
Share
Couldn't load pickup availability
Estimated delivery: 3-5 days(United States), 8-12 days (International).
Return within 15 days after Delivery. Duties & taxes are non-refundable.
Guarantee safe and secure checkout
Description
Description

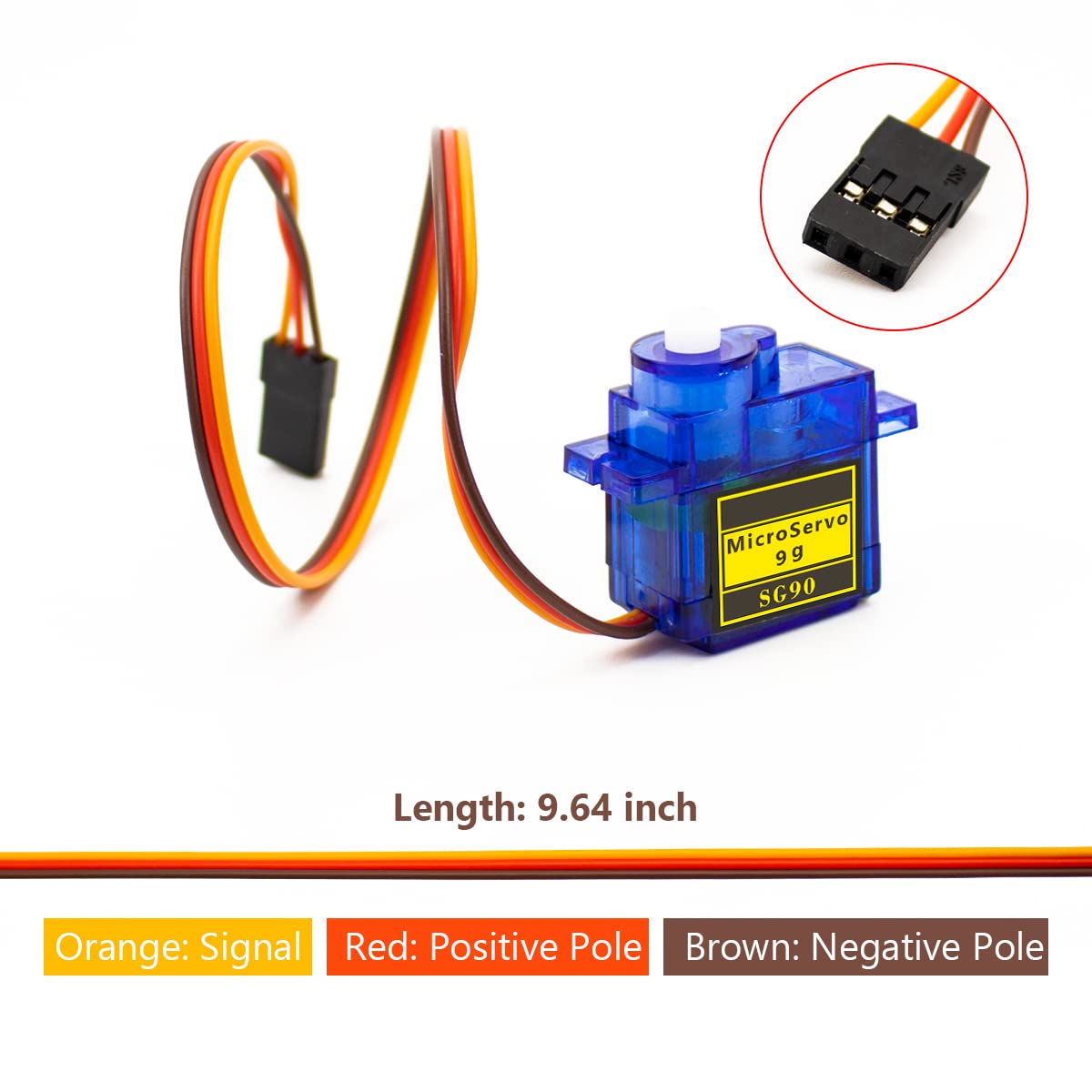

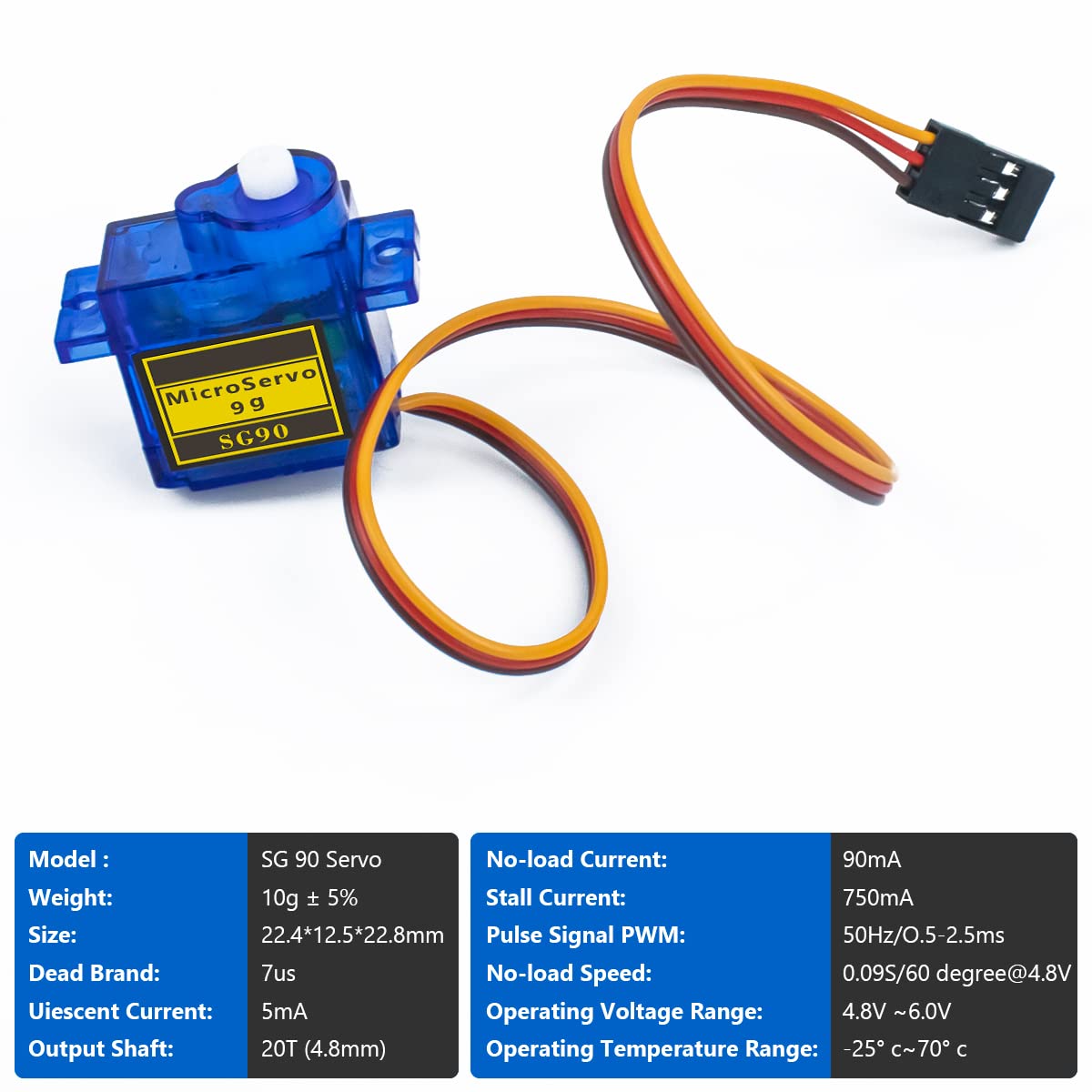

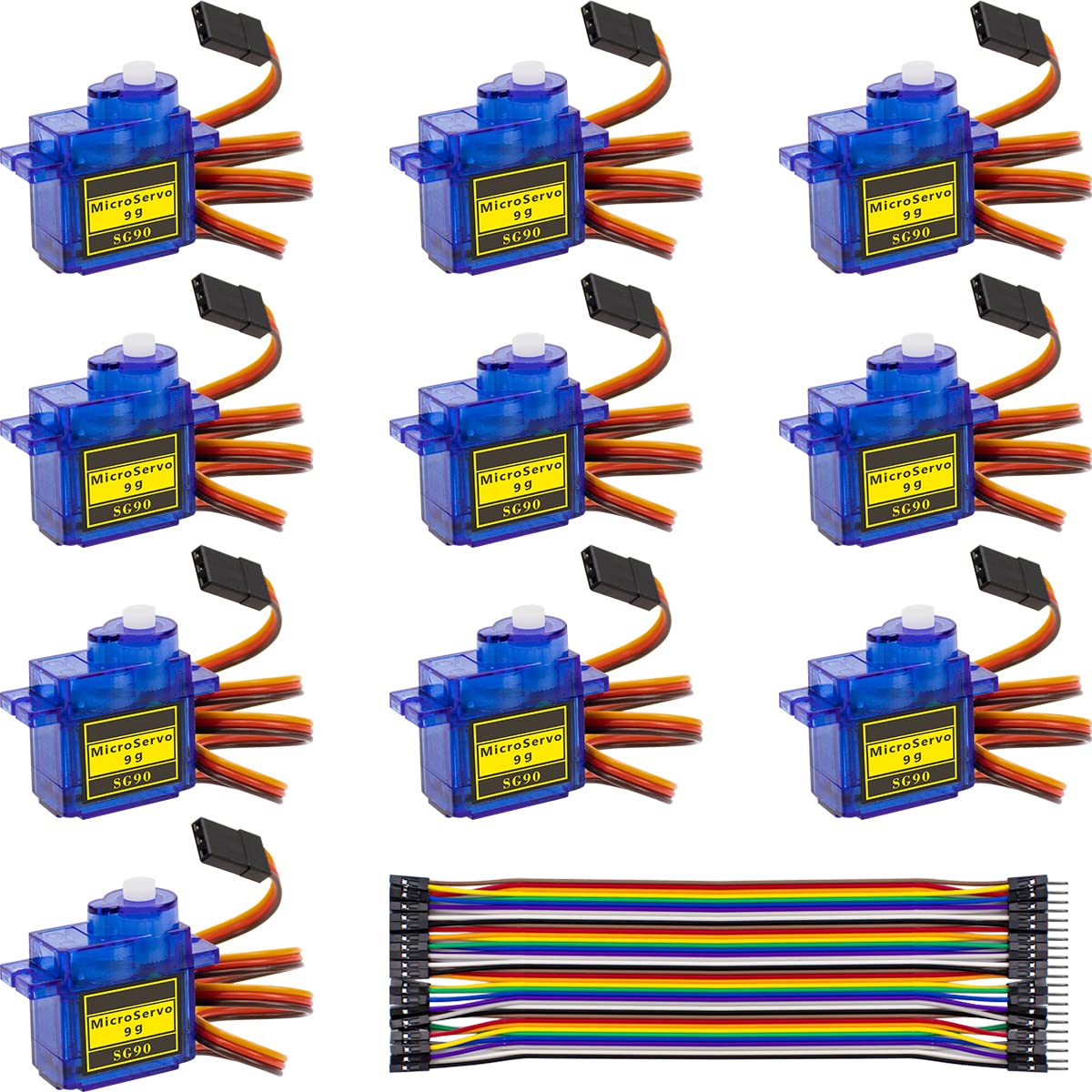

Mechanical Specification: ?Limit angle: 200 1 ?Weight: 9 1 g ?Connector wire gauge: #28 PVC ?Connector wire length: 250 5 mm ?Spline: 21T ?Horn type: Cross,star and bar-type ?Excessive play: =0.5 Control Specification: ?Control system: Change the pulse width ?Amplifier type: Analog controller ?Operating trave: l12010 (900?2100 sec) ?Left&Right travelling Angle deviation: = 6 ?Centering deviation: = 1 ?Neutral position: 1500 sec ?Dead band width: 7 sec ?Rotating direction: Counter Clockwise (900?2100sec) ?Pulse width range: 900?2100 sec ?Maximum travel: About 120 (900?2100 sec) Wire Layout: ?Electrical Specification (Function of the Performance): Operating ?speed (at no load): 0.090.01 sec/60(4.8V ) 0.080.01 sec/60(6V) ?Running current (at no load): 40030mA (4.8V ) 50030mA(6V) ?Stall torque (at locked): 2.00.20kgcm (4.8V ) 2.20.20kgcm(6V) ?Stall current (at locked): 130040mA (4.8V ) 160050mA(6v) ?Idle current (at stopped): 61mA (4.8V ) 61mA(6v) ?Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V ) Package include: 10 x SG90 9G servo motor 1 x 20cm female-male jumper wire
Shipping Information
Shipping Information
Shipping Information for Toytooth
Packaging & Shipping Protection
All orders are shipped in double boxes and come with full insurance for additional protection. Items are usually shipped within 2-3 working days. We are based right here in the United States, and we use secure shipping methods for your peace of mind. For your protection, we may contact you for extra verification of the payment method.
The product will be delivered to your doorstep, carefully packed to avoid any damage. We understand that privacy is important to our customers, and we aim to provide DISCREET packaging. The product name, description, sender's name, or any details that could hint at the product inside will be encrypted to ensure privacy. The package you receive will be completely discreet.
Note: All orders above $250 will require a signature upon delivery.
Shipping Destinations
We currently ship to the following countries:
| United States |
Spain | Denmark | Slovak Republic | Latvia |
| Great Britain | Poland | Japan | Singapore | Finland |
| Canada | Portugal | Hungary | Lithuania | India |
| Germany | UAE | Australia | Slovenia | Estonia |
| France | Austria | Croatia | Bulgaria | Turkey |
| Netherlands | Belgium | Czech Republic | Luxembourg | Israel |
| Sweden | Italy | Ireland | Saudi Arabia | Switzerland |
Processing Time
Orders are processed within 1-3 business days.
Shipping Methods & Delivery Times
Delivery times are estimates and may vary depending on the customer's location, customs processing, weather conditions, or other unforeseen circumstances.
- Domestic orders: Usually take 3-5 business days to deliver.
- International orders: Usually delivered in 8-12 business days.
Shipping Costs
Shipping costs are calculated at checkout based on the shipping destination and selected shipping method. We offer free standard shipping within the United States.
Customs, Duties, and Taxes
International orders may be subject to customs duties, taxes, and import fees imposed by the destination country. These charges are the responsibility of the customer. Please check with your local customs office for more details.
Order Tracking
Once your order has shipped, you will receive a tracking number via email to monitor your shipment's progress.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team, and we will assist you in resolving the issue.
Returns & Refunds
For details on returns and refunds, please refer to our Return Policy page.
For any questions, feel free to contact our customer service team at support@toytooth.com.
Safety & Compliance
Safety & Compliance
⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions

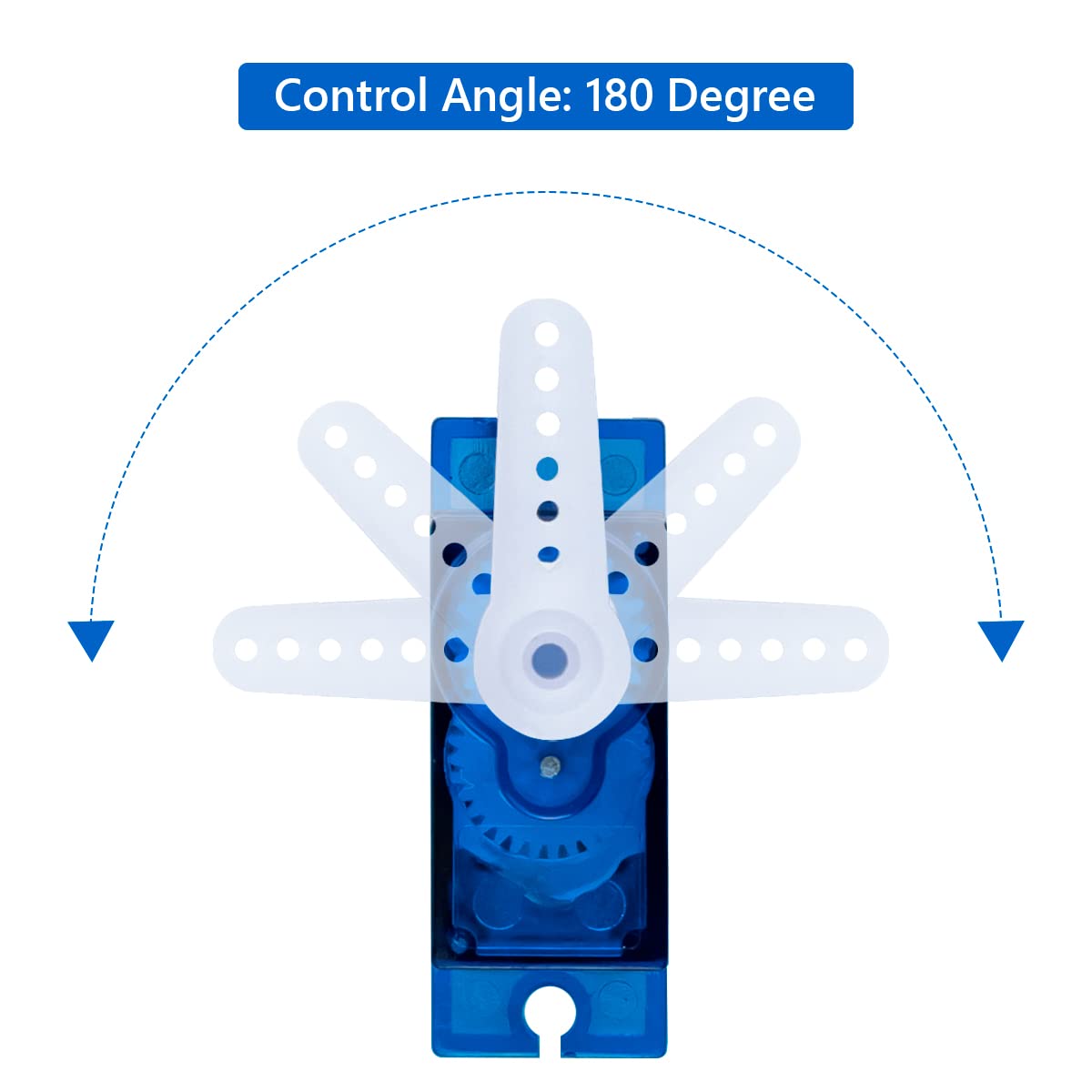

- Q: What is the maximum rotation angle for the SG90 9G servo motor? A: The SG90 9G servo motor has a maximum rotation angle of approximately 180 degrees, making it suitable for various applications like RC helicopters and robot arms.
- Q: Is the SG90 servo motor compatible with Arduino projects? A: Yes, the SG90 servo motor is compatible with Arduino projects, allowing you to easily integrate it into your DIY electronics and robotics projects.
- Q: What type of interface does the SG90 servo use? A: The SG90 servo motor is compatible with JR and Futaba interface types, making it versatile for different remote control systems.
- Q: What is the operating speed of the SG90 servo motor? A: The operating speed of the SG90 servo motor is approximately 0.12 seconds per 60 degrees at 4.8V (no load) and 0.1 seconds per 60 degrees at 6.0V (no load).
- Q: What voltage range does the SG90 servo motor operate on? A: The SG90 servo motor operates within a voltage range of 4.8V to 6.0V, making it suitable for various remote control toys and robotic applications.
