What are the key features of the KingVal 3660 Brushless Motor?

The KingVal 3660 Brushless Motor features a 4 Poles 12 Slots Hi-torque design, CNC Machined 6061 T6 Billet Aluminum Heatsink Can, high purity copper windings for maximum efficiency, and high RPM ABEC5 oversized bearings. It also has a precision balanced rotor for smooth operation and reliability.

Is the KingVal Brushless Motor compatible with all RC boats?

The KingVal Brushless Motor is designed to be compatible with most RC boats that support a 5mm shaft and can handle the motor's specifications, including a maximum voltage of 29V and a maximum current of 41A. Always check your boat's compatibility with the motor size and specifications before purchase.

How do I maintain the KingVal 3660 Brushless Motor?

To maintain the KingVal 3660 Brushless Motor, ensure it is kept clean and free from debris. Regularly check the bearings and rotor for smooth operation. It's also important to monitor the motor's temperature during use to prevent overheating, especially when using it with a water cooling jacket.

What is the maximum power output of the KingVal Brushless Motor?

The KingVal 3660 Brushless Motor has a maximum power output of 1200W, which allows for high performance and efficiency in various RC applications.

Can I replace the rotor of the KingVal 3660 Brushless Motor?

Yes, the KingVal 3660 Brushless Motor features a removable and replaceable rotor, allowing for easy maintenance and replacement if necessary.

1 5

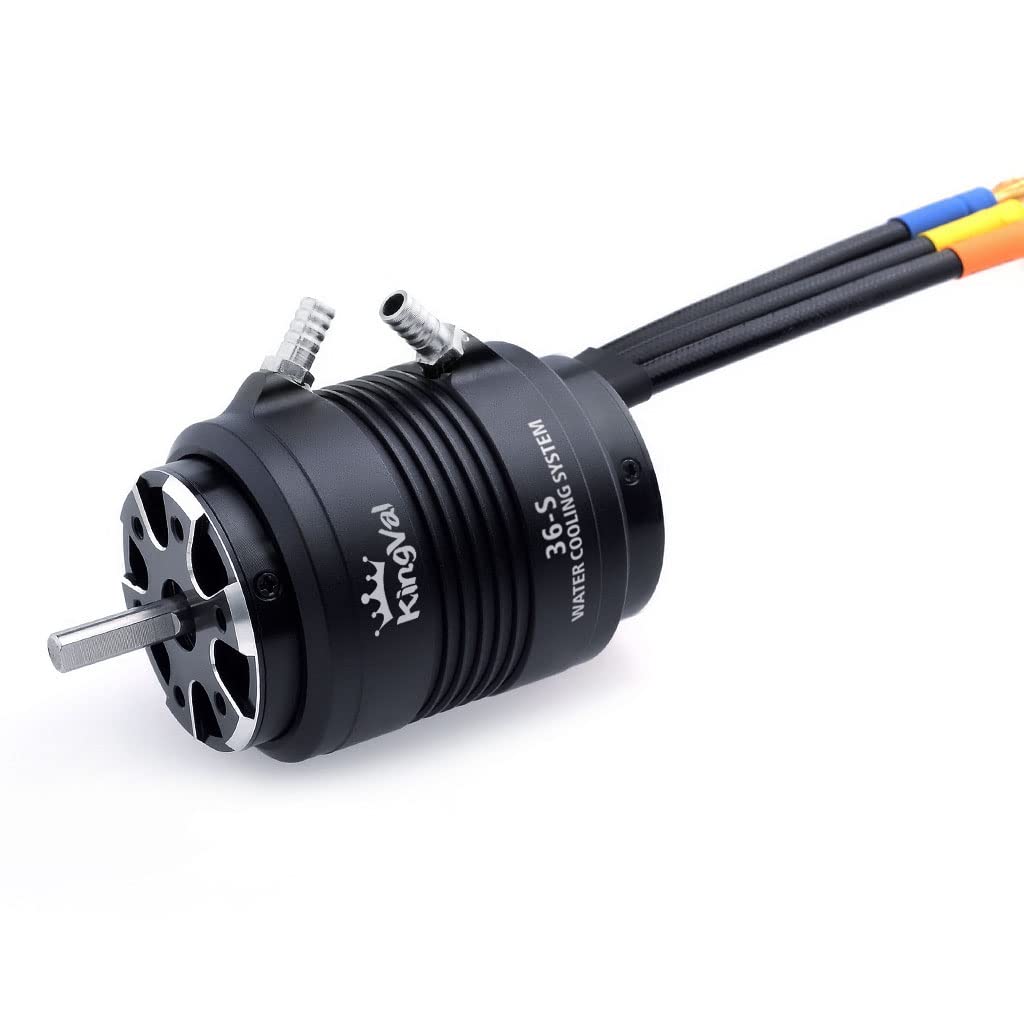

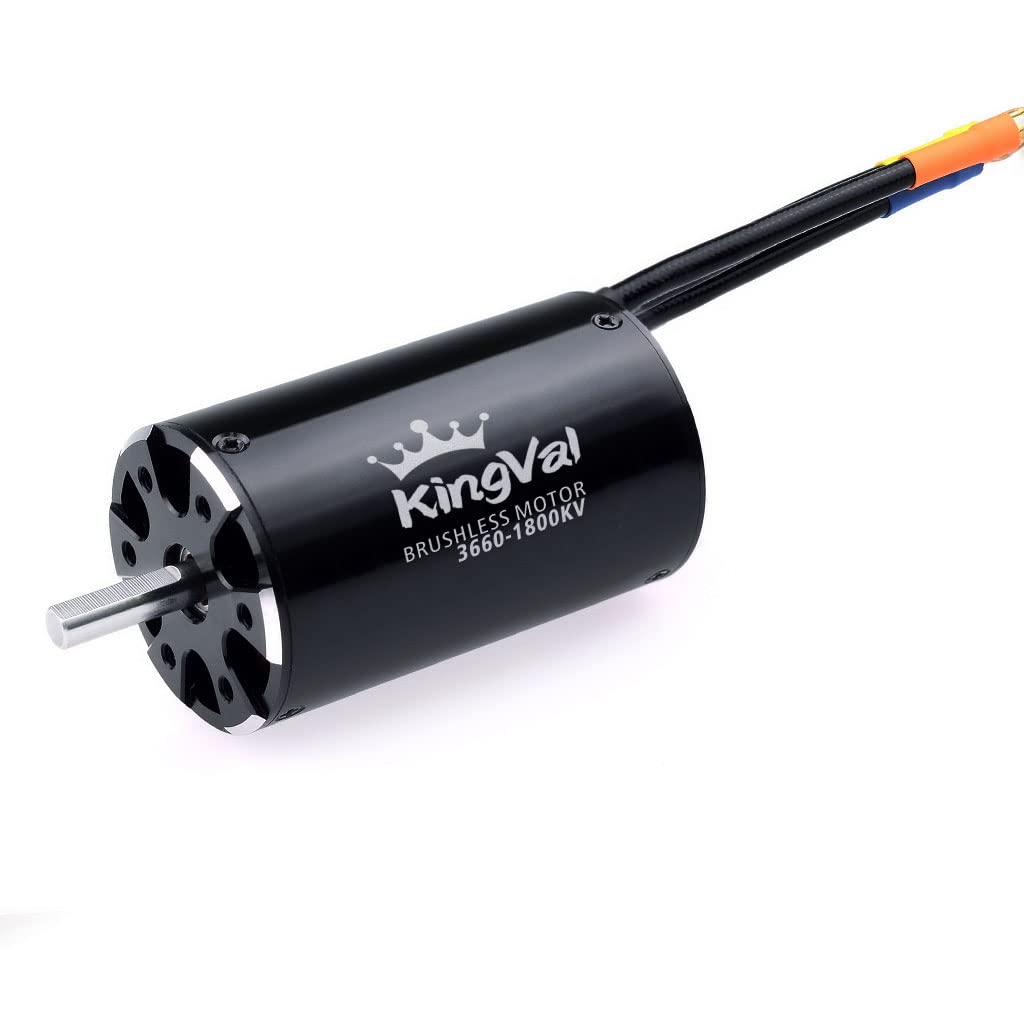

KingVal Replacement 3660 1800KV Brushless Motor Shaft 5mm with Water Cooling Jacket Unit Compatible with RC Boat

Name: KingVal Replacement 3660 1800KV Brushless Motor Shaft 5mm with Water Cooling Jacket Unit Compatible with RC Boat
Brand: KingVal
SKU: WBTOYB0B6VSLBNG
Price: 59.15 USD
Availability: InStock

Availability

Hurry! Only left 10 in stock

SKU

WBTOYB0B6VSLBNG

Vendor

KingVal

Product Type

RC Cars & Trucks

$59.15 USD

$59.15 USD ~~$84.50 USD~~

SAVE 30%

Shipping calculated at checkout.

Product variants

Estimated delivery: 3-5 days(United States), 8-12 days (International).

Return within 15 days after Delivery. Duties & taxes are non-refundable.

Guarantee safe and secure checkout

View full details

Description

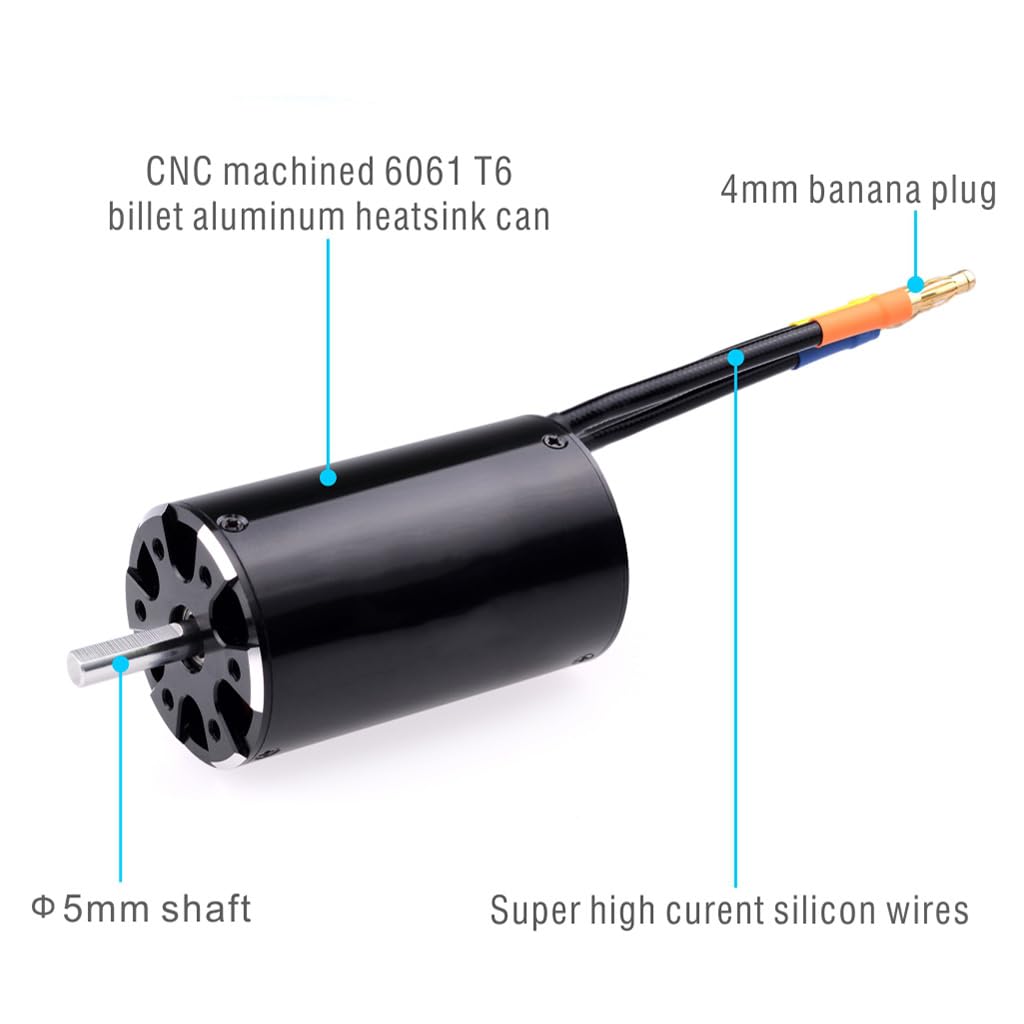

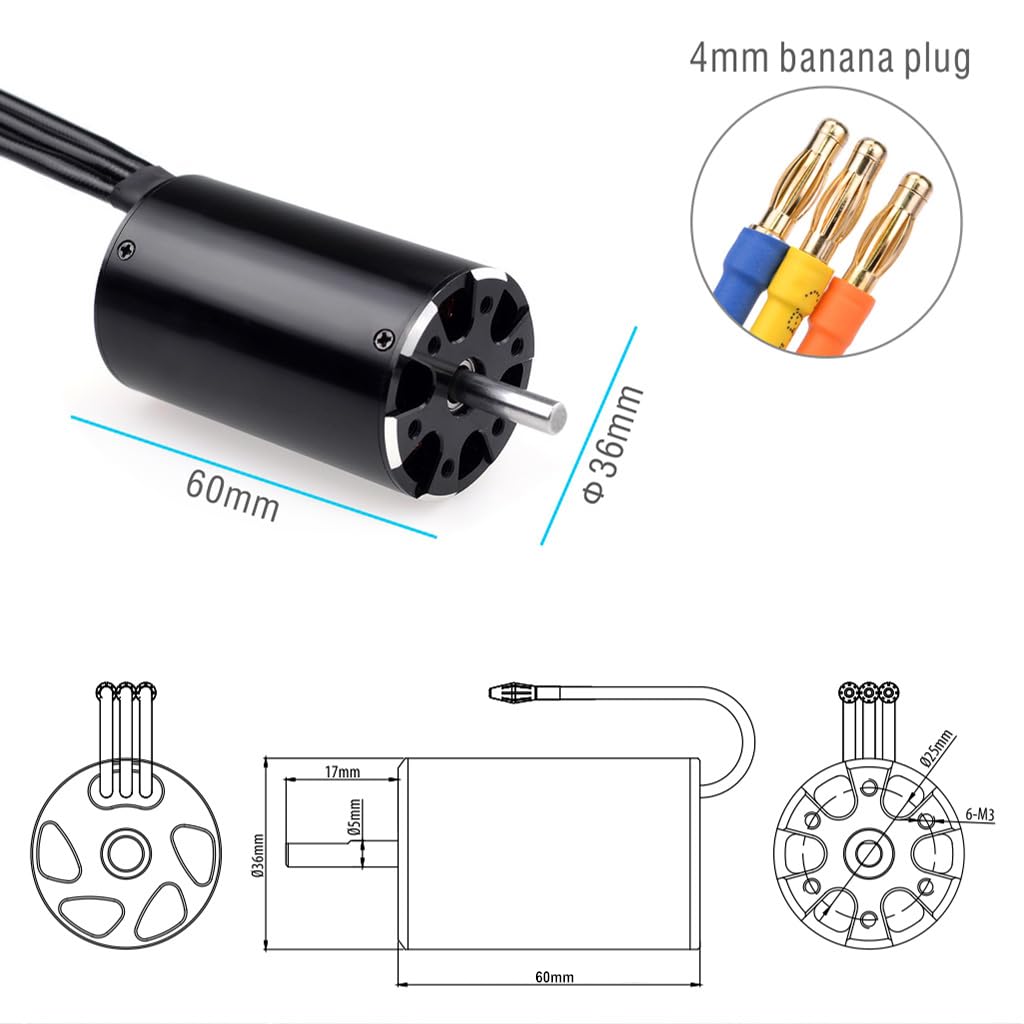

Features: *4 Poles 12 Slots Hi-torque Motor Design *CNC Machined 6061 T6 Billet Aluminum Heatsink Can *High Purity Copper Windings Maximizes Efficiency *High RPM ABEC5 Oversized Bearings *Precision balanced rotor, smoothness for best reliability and maximum RPM *Stator - Super Thin (0.2mm) Laminations *Removable/Replaceable Rotor *Precision Engineered for Maximum Energy Conversion Specifications: Brand: KingVal Product: 3660 Brushless Motor Motor Size: 36x60mm KV(RPM/Volt): 1800 Max Amps: 41A Max Voltage: 29V Max Power: 1200W Winding Type: WYE Number of Turns: 3.5Y No Load Current: 1.3A Max RPM: 60000 Shaft Diameter: 5mm Rotor Poles: 4 N.W: 214g Water Cooling Jacket Unit: Size: 47x44mm (L*D) Inner Diameter: 36mm N.W: 33g Features with 2 Rubber Rings Inside Package List: 1 x 3660 Brushless Motor 1 x Water Cooling Jacket Unit
