View compareSavox SC-0254mg High Torque Standard Size Digital Servo

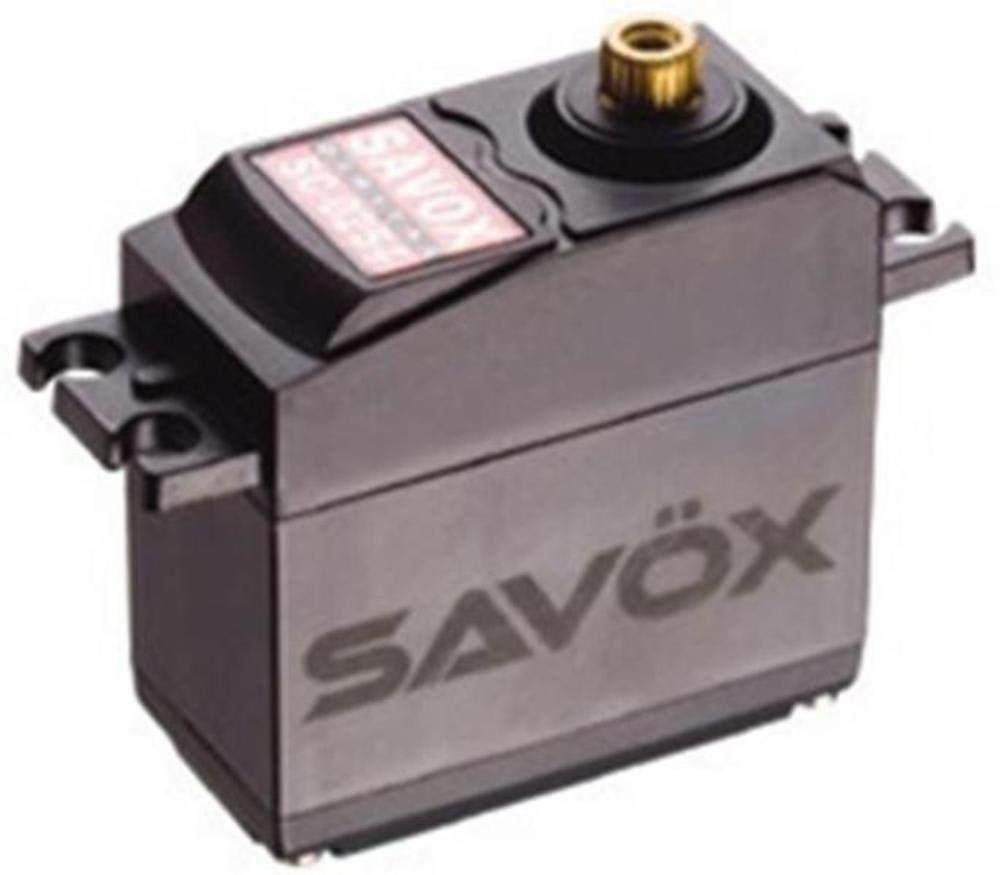

Savox SC-0254mg High Torque Standard Size Digital Servo
Out of stock
Regular price
$50.00 USD
Sale price
$50.00 USD
Regular price
$71.43 USD
Unit price
per
Shipping calculated at checkout.
Sold by Toytooth, an authorized reseller.
Share
Couldn't load pickup availability
Estimated delivery: 3-5 days(United States), 8-12 days (International).
Return within 15 days after Delivery. Duties & taxes are non-refundable.
Guarantee safe and secure checkout
Description
Description
Product DescriptionDimensions(mm): 40.7X19.6X39.4Weight(g): 49.0Speed(@4.8V sec/60): .19Torque(@4.8V oz-in): 86.1Speed(@6.0V sec/60): .14Torque(@6.0V oz-in): 100.0Gear: MetalBearing: 2BBCase: Plastic25 Tooth SplineFrequency: 200-250hzPulse Width Frequency: 1520Operating Temperature Range (C) -10-50Operating Voltage Range (V): 4.5-7.2Running current (at no load): 220 mA @ 4.8VRunning current (at no load): 240 mA @ 6.0VStall current (at locked): 1300 mA @ 4.8VStall current (at locked): 1500 mA @ 6.0VIdle current (at stopped): 6 mA @ 4.8VIdle current (at stopped): 6 mA @ 6.0VLimit angle: 1805Connector wire gauge: #26 AWGConnector wire length: 300 5 mmHorn gear spline: 25TControl system: Pulse width modificationAmplifier type: Digital ControllerOperating Trave: 120 (when 1000?2000 sec)Neutral position: 1500 secDead band width: 5 secRotating direction: Counterclockwise (when 1500?2000 sec)Pulse width range: 800?2200 secMaximum travel: Approx 164 (when 800?2200 sec)From the ManufacturerThis is the Savox SC-0254MG High Torque Standard Size Digital Servo. Over-spec refined design out performs ordinary servos. Precision metal gears form a strong and solid framework. Strict production and quality control of plastic components ensures long life and reliability. Our servos are totally green - from materials to production, these servos are . Ideal for 30 size airplanes and steering for 1/8th scale buggies.
Shipping Information
Shipping Information
Shipping Information for Toytooth
Packaging & Shipping Protection
All orders are shipped in double boxes and come with full insurance for additional protection. Items are usually shipped within 2-3 working days. We are based right here in the United States, and we use secure shipping methods for your peace of mind. For your protection, we may contact you for extra verification of the payment method.
The product will be delivered to your doorstep, carefully packed to avoid any damage. We understand that privacy is important to our customers, and we aim to provide DISCREET packaging. The product name, description, sender's name, or any details that could hint at the product inside will be encrypted to ensure privacy. The package you receive will be completely discreet.
Note: All orders above $250 will require a signature upon delivery.
Shipping Destinations
We currently ship to the following countries:
| United States |
Spain | Denmark | Slovak Republic | Latvia |
| Great Britain | Poland | Japan | Singapore | Finland |
| Canada | Portugal | Hungary | Lithuania | India |
| Germany | UAE | Australia | Slovenia | Estonia |
| France | Austria | Croatia | Bulgaria | Turkey |
| Netherlands | Belgium | Czech Republic | Luxembourg | Israel |
| Sweden | Italy | Ireland | Saudi Arabia | Switzerland |
Processing Time
Orders are processed within 1-3 business days.
Shipping Methods & Delivery Times
Delivery times are estimates and may vary depending on the customer's location, customs processing, weather conditions, or other unforeseen circumstances.
- Domestic orders: Usually take 3-5 business days to deliver.
- International orders: Usually delivered in 8-12 business days.
Shipping Costs
Shipping costs are calculated at checkout based on the shipping destination and selected shipping method. We offer free standard shipping within the United States.
Customs, Duties, and Taxes
International orders may be subject to customs duties, taxes, and import fees imposed by the destination country. These charges are the responsibility of the customer. Please check with your local customs office for more details.
Order Tracking
Once your order has shipped, you will receive a tracking number via email to monitor your shipment's progress.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team, and we will assist you in resolving the issue.
Returns & Refunds
For details on returns and refunds, please refer to our Return Policy page.
For any questions, feel free to contact our customer service team at support@toytooth.com.
Safety & Compliance
Safety & Compliance
⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
- Q: What are the dimensions of the Savox SC-0254MG servo? A: The dimensions are forty point seven millimeters by nineteen point six millimeters by thirty-nine point four millimeters.
- Q: What is the weight of this servo? A: The servo weighs forty-nine grams.
- Q: What materials are used in the Savox SC-0254MG? A: The servo features a plastic case and metal gears, ensuring durability and reliability.
- Q: How do I operate the Savox SC-0254MG servo? A: Connect the servo to a compatible controller and use pulse width modulation to control its position.
- Q: Is this servo suitable for beginners? A: Yes, the Savox SC-0254MG is user-friendly and suitable for both beginners and experienced hobbyists.
- Q: What applications can I use this servo for? A: This servo is ideal for thirty size airplanes and steering for one-eighth scale buggies.
- Q: How do I maintain the Savox SC-0254MG servo? A: Keep the servo clean and ensure proper voltage within the operating range of four point five to seven point two volts.
- Q: What is the operating temperature range for this servo? A: The operating temperature range is minus ten to fifty degrees Celsius.
- Q: Can I use this servo in wet conditions? A: No, it is not waterproof; avoid exposing the servo to moisture.
- Q: How do I troubleshoot issues with this servo? A: If the servo does not respond, check the connections and ensure the power supply is within the specified voltage range.
- Q: What should I do if my servo arrives damaged? A: Contact customer support for assistance with returns or exchanges if the servo is damaged upon arrival.
- Q: What is the warranty period for the Savox SC-0254MG? A: The warranty period varies by retailer; check with the seller for specific warranty details.
- Q: Is the Savox SC-0254MG servo compatible with all controllers? A: It is compatible with most controllers that support pulse width modulation.
- Q: What is the stall current of the Savox SC-0254MG? A: The stall current is thirteen hundred milliamps at four point eight volts and fifteen hundred milliamps at six volts.
- Q: What is the maximum travel of this servo? A: The maximum travel is approximately one hundred sixty-four degrees when using a pulse width range of eight hundred to two thousand two hundred microseconds.
