What is the maximum continuous current rating for the Amass MR30 connector?

The Amass MR30 connector has a maximum continuous current rating of 30A when used within a 30-minute period.

Can I use the Amass MR30 connectors with my RC multicopter?

Yes, the Amass MR30 connectors are suitable for connecting ESCs and motors in RC multicopters and other remote-controlled vehicles.

What materials are used in the construction of the Amass MR30 connector?

The Amass MR30 connector is made of brass with a gold plating for improved conductivity, and the insulation material is PA66.

How many Amass MR30 connectors are included in the package?

The package includes a total of 20 connectors: 10 male and 10 female Amass MR30 connectors.

What is the recommended soldering specification for the Amass MR30 connectors?

The recommended soldering specification for the Amass MR30 connectors is 400°C for 3 seconds.

1 5

SoloGood 10 Pairs Amass MR30 Male Female Connector Plug for RC Multicopter Airplane

Name: SoloGood 10 Pairs Amass MR30 Male Female Connector Plug for RC Multicopter Airplane
Brand: SoloGood
SKU: WBTOYB0747MW9RX
Price: 12.71 USD
Availability: InStock

Availability

Hurry! Only left 10 in stock

SKU

WBTOYB0747MW9RX

Vendor

SoloGood

Product Type

Batteries & Chargers

$12.71 USD

$12.71 USD ~~$18.16 USD~~

SAVE 30%

Shipping calculated at checkout.

Product variants

Estimated delivery: 3-5 days(United States), 8-12 days (International).

Return within 15 days after Delivery. Duties & taxes are non-refundable.

Guarantee safe and secure checkout

View full details

Description

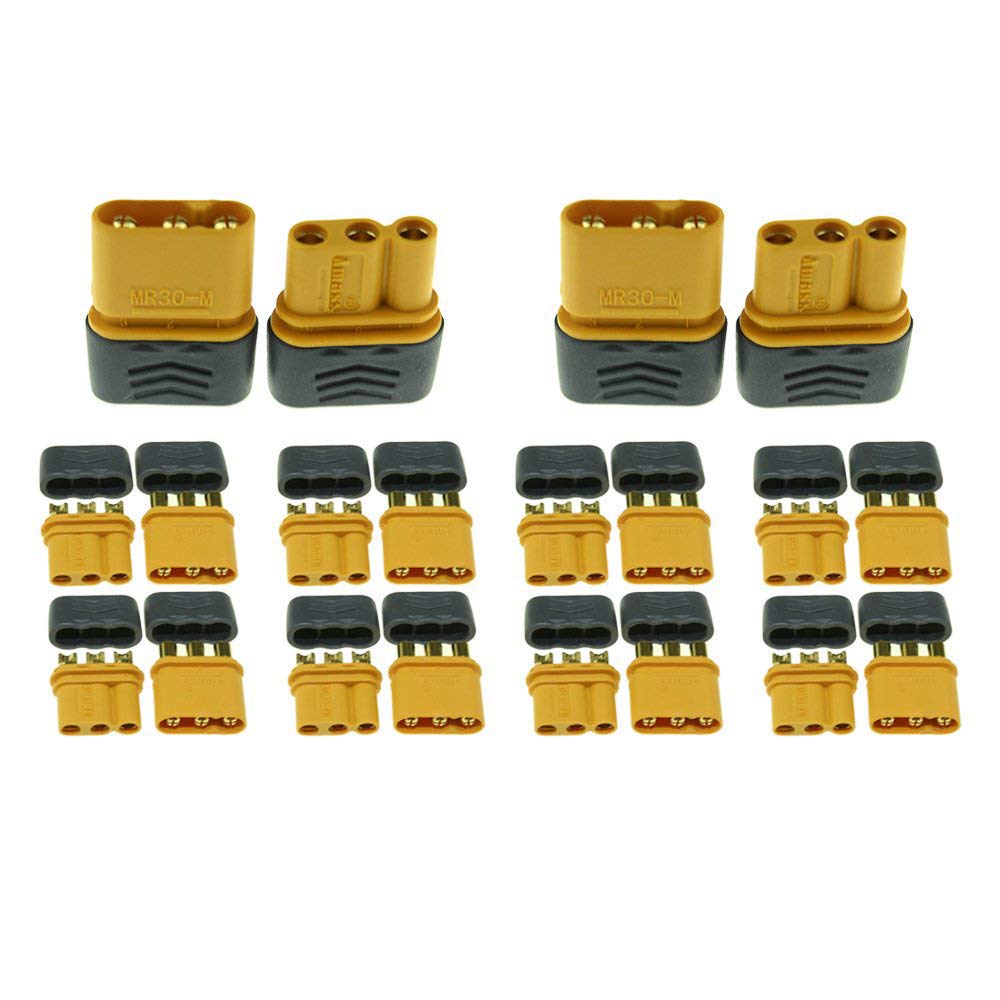

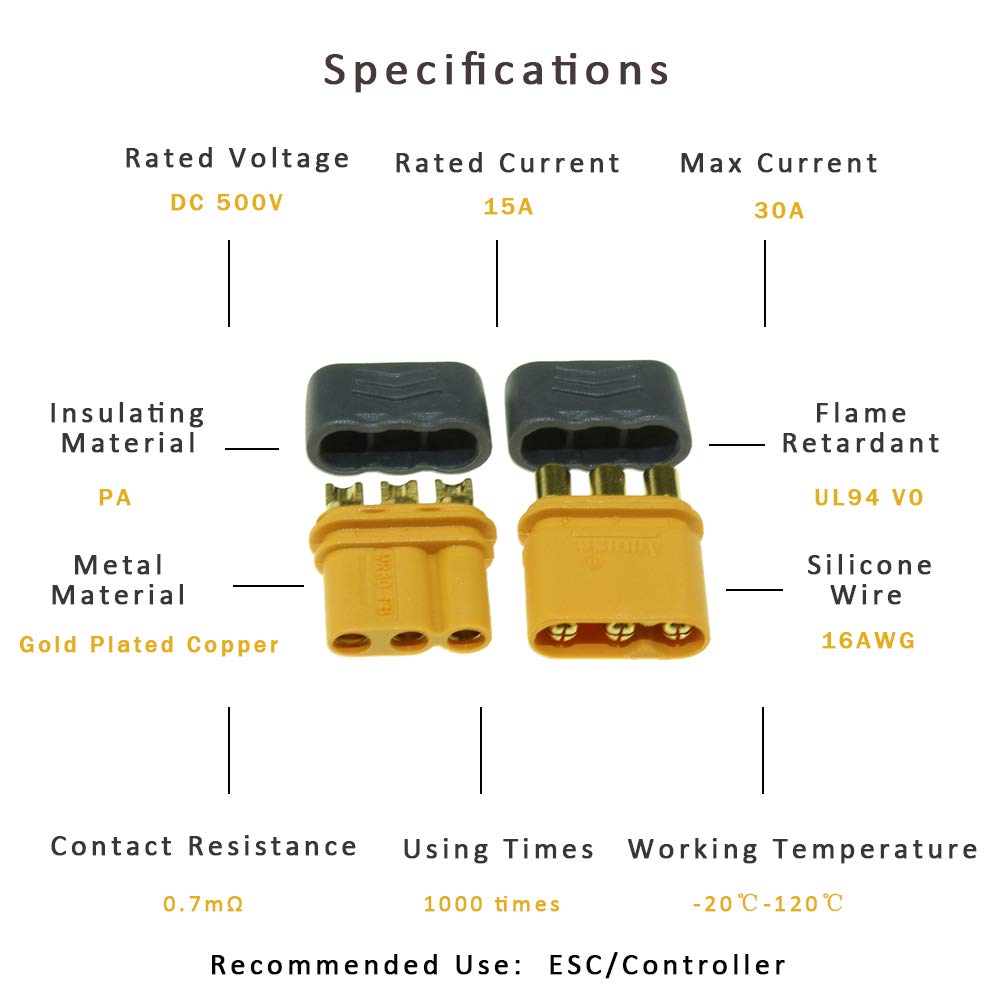

Specification: Brand Name: Amass Item Name: MR30 connector Body Material and Surface Plating: Brass and gold plated Insulation Material: PA66 Original Internal Resistance: 0.8MO 500 Times Internal Resistance: 0.85MO Max. Continuous Current: 30A (within 30 minitues) Max. Instantaneous Current: 40A (within 1 minitues) Recommended Cable Spec: 18AWG,20AWG,22AWG 2.8mm diameter Recommended Soldering Spec: 400 C/3S Weight: 1.2g/pcs Insulation Degree: UL94V-0 Machine Life: 3000 Times Features: - Suitable for connecting ESCs and motors - With protective sleeve - Assistive weld foot, more stable Package Included: 10pcs Amass MR30 Connector male 10pcs Amass MR30 Connector female
